Welcome to visit

Yt-B Series Auto Feeder Carton Cardboard Machine

US$14,999.00
1 set
US$14,890.00
2+ set

Basic Info.

Model NO.
YTSZ-B2400/2600/2800
Max Piling Height
1800mm
Max Cardbaord Dimension
1200X2400mm
Max Piling Weight
2000kg
Min Cardbaord Dimension
300X800mm
Transport Package
PVC Film
Specification
1200x2400/1200x2600
Trademark
YT-PACK
Origin
Cangzhou China
HS Code
84393000
Production Capacity
25 Pieces/Month

Product Description

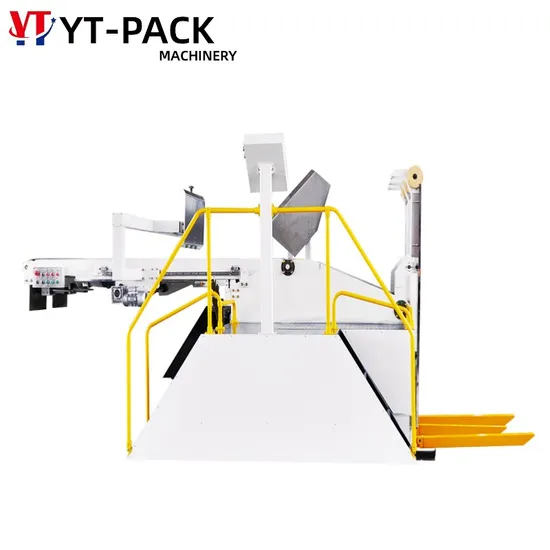

YTSZ-B Series Auto Feeder Machine(Pre-feeder)
Structural features:
Reduce costs, improve efficiency, and reduce waste: single-person operation reduces the number of workers, reduces the labor cost of the enterprise, and reduces the labor intensity of the workers. It can increase the speed of the vehicle and improve the work efficiency. Reducing the number of times workers touch the cardboard can reduce the damage to the cardboard caused by manual intervention. Stable performance: Adopt 2 sets of hydraulic systems with mature efficiency at present. Hydraulic cylinders are used to provide power for inclination, elevation, and conveying bed height, which is powerful, stable and durable; the conveyor belt transmission is powered by hydraulic motors, which takes up little space and has large torque , transport evenly. Simple operation: button and touch screen man-machine graphic interface, PLC control, easy to identify and convenient to operate, real-time display of working status.
Easy to use: Customers provide their own longitudinal ferry logistics vehicles, which are transported to the feeding roller row of the paper loading machine.
Technological parameter:
Model YTSZ-B2400 YTSZ-B2600
Max.board specifications 1200*2400mm 1200x2600mm
Min.board specifications 300x800mm 300x800mm
stacked weight 2000kg 2000kg
Max piling height 1800mm 1800mm
