Mini Excavator Xn08 From Rhinoceros

Product Description

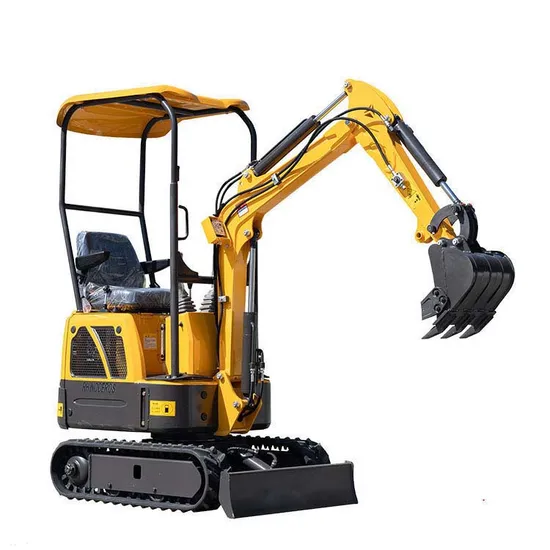

XN08 Mini Crawler Excavator :
This excavator is designed for small works, small projects, in garden, farmland, municipal works, vegetable greenhouse, digging trench It is with small engine, simple design, easy to maintain.
Main Specification:

Brand	RHINOCEROS
Operating Weight	800kg
Digging bucket capacity	0.025cbm
Bucket width	380mm
Engine	CHANGCHAI
Rated power	8.6 kw/3600r/min
Displacement	0.211 L
Bore stroke	70x55
Main pump	ZANEDA
Displacement	6.8ml/r
Hydraulic system pressure	16 Mpa
Swing motor	SJ-TECH (MP-1-160)
Traveling motor	KERSEN (OMS-2450)
Travel speed	1.5km/h
MAIN DEMENSIONS
Overall dimension( LxWxH)	2770x896x1490 mm
Total length of track	1230mm
Platform ground clearance	380 mm
Platform back turning radius	784 mm
Chassis width	896 mm
Track width	180 mm
Chassis ground clearance	132 mm
Track height	320 mm
Diesel tank capacity	10 L
Hydraulic oil tank capacity	16L
OPERATING RANGE
Max. Digging depth	1650 mm
Max. Digging height	2610 mm
Max. Dumping height	1850 mm
Max. Digging radius on ground	2850 mm
Min. Rotation radius	1330 mm
Max. Upgrade height of bulldozer blade	345 mm
Max. Digging depth of bulldozer blade	255 mm
Bucket digging force	9.2kN
Bucket arm digging force	4.8kN

Display:
n
XN08 FAQ What is the machine advantage? Why I choose from you ? A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers,
Each machine is carefully tested before send to customer.
Warranty time for 1 year or 1200 working hours.
How many units can be put in container? A: 8 units can be loaded in a 20 GP, 16 units in a 40GP.

Spare parts supply A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year. There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.

---
