Pet PS PS PLA Thermoforming Machine Disposable Cup Fruit Box Making Machine

Product Description

How To Choose A Suitable Thermoforming Machine for your products and production capacity?

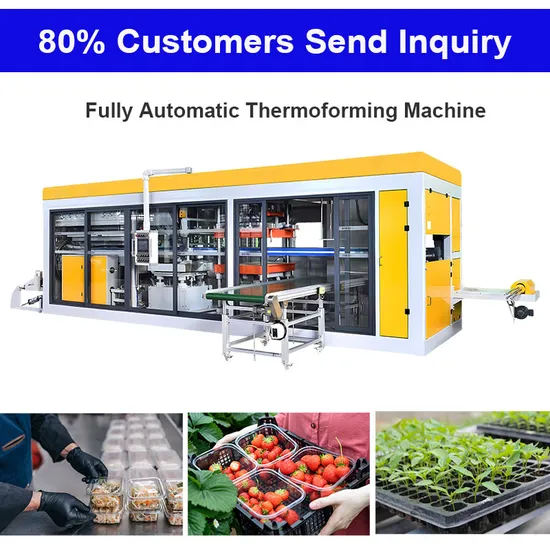

Fully Automatic Three Stations Negative Pressure Thermoforming Machine
Product Description
1,Full servo drive, no noise, no vibration, good thermal forming, fast speed.

2,The automatic discharge device of the furnace can be lowered at any time during the production process, without breaking the plate and wasting materials.

3,The electric furnace temperature control system adopts intelligent automatic compensation control and a one-time control regulator, which is easy to adjust the temperature evenly, is easy to use, easy to operate, and heats up quickly. It can bake low-temperature slices up and down three times in the oven.

4,Forming and slitting mold servo drive, with bi-directional adjustable upper and lower mold travel, and electrically adjustable upper mold closing direction. In the closed mode, the height and position of the upper and lower molds can be easily and quickly adjusted; The direction of the lower mold closing is easy to approach and buffer, improving the closing speed and avoiding vibration.

5,PLC automatic cutting, automatic counting, and automatic transmission.

6.Effortless, only 1-2 workers need to pack.
1,It is suitable for forming thermoplastic materials with a thickness of 0.15-2.0mm, such as PS HIPS, PVC, PET, PP, PE, PS, KPS, GPET, ABS, etc., and can process high transparency, high tensile, round, square, irregular, up and down two-way tensile, and flanging products.

2. Electronics: turnover pallets for semi-finished electronic product production lines, cost packaging for electronic products, etc.

3. Food category: frozen food packaging trays, ice cream lids, ice cream boxes, food packaging trays, fast food boxes, plates, coffee beverage cup lids, cooked food packaging boxes, etc.

4. Fruits and vegetables: fresh food packaging trays, fruit packaging boxes, etc.

5. Pharmaceutical products: Injection trays, solid drug trays, bottle trays, etc.

6. Electrical appliances: refrigerator lining, electrical vacuum molding accessories, small electrical appliance packaging, etc.
6. Tool category: tool finished product packaging, etc.

7. Alcohol: Fixed trays for bottle packaging, etc.

8. Agriculture: Flower pots, seedling trays, etc.
Product Parameters

Name	Specification	Remarks
Forming length	400mm-850mm
Forming width	450mm-720mm
Forming Depth	0-110mm
Voltage	380V 3N 50Hz	Three-phase four-wire 50Hz
Rated Voltage Of Electric Furnace	18.2KW	Maximum 40-50KW
Production speed	3sec/mould	20 moulds/min
Maximum punching pressure	50 tonnes
Maximum cutting pressure	60 tonnes

Max.pressure of Forming	55 tonnes
Heating area of electric fumace	870*750mm	84pcs heating bricks for upper and lower furnaces.
Machine size	L6500*W2150*H2800MM	Three working stations(moulding,punching,stacking)
Total length of the machine	8800mm	Main machine,feeder,scrap roll machine
Total weight of the machine	9 tonnes	Main machine.feeder,scrap roll machine

Production Process
Scope of application:
1. Our standard packing method is film wrapping. 2. Wooden case packing can be provided as required and the cost will be charged. 3. The delivery date of machine is within 45 days per set. 4. Shipment in Shenzhen port or Shanghai port, China
Relative Machines
Plastic Sheet Extrusion Machines
Taizhang provide a variety of plastic sheet extrusion production line solution, such as PET, PP, PE, PS, ABS, PC, PMMA, PLA, etc. Widely used in plastic sheet thermoforming industry.
Plastic Sheet Thermoforming Machines:
Taizhang provide professional plastic sheet thermoforming production solution, widely suitbale for produciton of plastic food container, fruit egg tray, seedling tray, electronic tray, plastic cup, lid, plate, flowerpot,etc.
Plastic Cup Making Machine
Taizhang pisposable cup making machines,they are widely
used for plastic milk tea cups, coffee cups, disposable watercups, fast food box,plastic lid,fruit box,fresh food tray,etc.
Certifications

Service
1. Pre-sales Service
TANZ MACHINERY has a specialized and efficiency working team. If you are new on the plastic forming machine area,we are glad to give you specialized suggestion of the whole work.
2. Shipping Service
TANZ MACHINERY has a specialized and independent department to arrange the shippment. We will prepare all the necessary documents so as to arrange the delivery smoothly,
we cooperate with the most famous shipping company in China,they could provide the best and economic shipping ways to destinaion.
3. Installation Services
Installation Services are avaliable with TANZ Company machines. We could dispatch technician to the Buyer's factory for installation and preparation of the machines.
The buyer needs to supply the round trip tickets,food,hotel cost and daily salary.
4. Cilents Training Services
The buyer could aslo send your own technician come to TANZ factory to learn how to operate machines,Our technician will teach and train the learners hand by hand till he operate machine by himself.
5. After Sales Service
TANZ Company machines guarantee time is one year.
FAQ
Q:What's your delivery date?
A:Usually finish the production within 45 days after received your 30% advanced payment, actually need to check according our stock & production plan.
Q: Terms of payment?
A: We accept T/T with 30% in advance and 70% before shipment. Also we could accept L/C at sight.
Q: How many days will the finish installing ?
A: We will finish installation and training within 15days.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from the day when finished installation.
Q: How could we do after one year warranty period?
A: We provide 1 year warranty. Within the warranty period, we provide free machine parts and repair service but not including shipping cost if it is not caused by human factors. After 1 year, we provide lifetime service with affordable charge.
Q: How many worker do we need to operate those machines?
A: Usually one machine needs 1-2 operators.
Q: Can you supply raw materials?
A: In addition to producing blister machines, we also produce plastic sheet extruders. If you think the price is right, you can buy our machine to produce sheets. If you do not want to purchase a sheet machine, we can also help you order raw materials and arrange machine shipment.PLEASE FEEL FREE TO CONTACT US !
