Heavy Duty Gantry Type Milling Machine Pmd3012 Maxnovo

Product Description

MM-PMD3012 / Gantry Type Milling Machine / Milling Machine / Universal Milling Machine / Conventional Milling Machines / Vertical and Horizontal Milling Machine / Planer Type Milling Machine

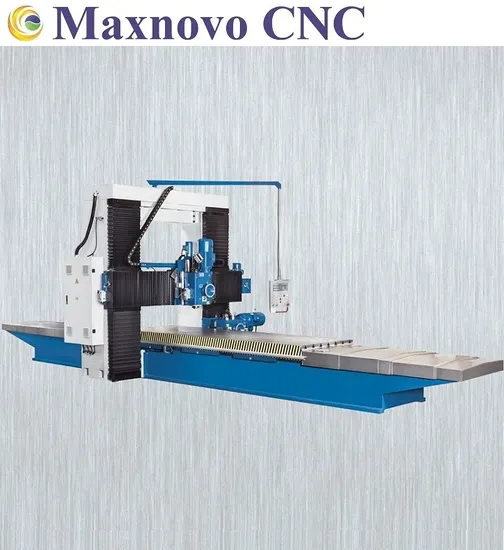

This kind of MM-PMD3012 solidly constructed conventional Beam Gantry-Type Milling Machine features Vertical and Horizontal milling capacity with large travels. Such heavy duty Planer Milling Machine with solid work table 3000X1250 mm and maximum table load capacity 4000 KGS which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Safety Certification.
Product Description

Conventional Beam Gantry-Type Milling features Vertical and Horizontal Milling Capacity with Large Travels
Main Feature :
Convincing Arguments : Quality, Efficiency and Price Solid Larger Work Table 3000 X 1250 mm Maximum Load Capacity of Table 4000 KGS work-pieces Bed, columns and travel tracks from a solid cast-iron frame structure for high rigidity under hard machining conditions and high table load Infinitely variable feed on X-axis Main spindle gears with 6 steps - for Vertical and Horizontal operation Automatic central lubrication Control panel mounted on long arm giving user maximum positioning flexibility The traverse height is adjustable ensuring high rigidity even with flat work-pieces since the throat size can be minimized Rigid guides with ground surfaces support table across entire travel distance to ensure constant high geometric accuracy All guide-ways are protected by telescoping or bellows Two main spindle heads for competitive manufacturing Vertical spindle head on height-adjustable traverse move across entire machining width 2-sided machining of work-piece in vertical and horizontal direction with only one setup Both spindle heads can swivel from -35 degree to +35 degree Easy positioning of the horizontal spindle on the right column guide on Y-axis and via a compact guide-way slide 350 mm on the Z-axis Gantry construction fully integrated into machine frame for maximum rigidity Weight balancing systems easy movement and precise positioning of horizontal spindle head 3-axis Digital Position Indicator is optional Certificate of Original (CO, FORM A, FORM E, FORM F )
Product Parameters

Technical Data :

Product Name :	Conventional Gantry Type Milling Machine
Product Item :	MM-PMD 3012
Working Area
Table Size :	3000 X 1250 mm
Max. Load Capacity of Table :	4000 KGS
T-slot Size :	7 Pieces X 28 mm (Width) X 200 mm (Spacing)
Milling Head Swivel Range :	-35 degree to +35 degree
Travels
Max. Travel X-axis :	3000 mm
Max. Travel Y-axis :	1400 mm
Max. Travel Z-axis :	1000 mm
Horizontal Spindle
Spindle Taper (Horizontal) :	ISO 50
Spindle Speed (Horizontal) :	82 - 505 RPM
Distance from Spindle Center to Table :	0 - 500 mm
Vertical Spindle
Spindle Taper (Vertical) :	ISO 50
Spindle Speed (Vertical) :	82 - 505 RPM
Distance from Spindle Nose to Table :	130 - 1130 mm
Feed
Table Feed :	25 - 450 mm/min
Table Rapid Feed :	1300 mm/min
Feed Y-axis (Vertical Spindle) :	65, 320 , 890 mm/min
Feed Y-axis (Horizontal Spindle) :	50, 265 , 730 mm/min
Drive Capacity
Main Motor (Vertical Spindle) :	7500 W
Main Motor (Horizontal Spindle) :	7500 W
Motor Rating X-axis Drive :	7500 W
Motor Rating Y-axis Drive :	1250 W
Motor Rating Z-axis Drive :	1250 W
Gross Weight :	16000 KGS
Machine Size :	7180 X 3550 X 3150 mm
Standard Accessory :	Central Lubrication System, Foundation Bolts, Tools and Toolbox

Our Advantages
Guarantee of Quality
The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the MAXNOVO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance. Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the MAXNOVO MACHINE. The Metal Scraper Craftsmanship is one of the most important techniques in machine tool industry. To make sure the surface perfectly flat
and smooth, we repeat check and scrap by hand with Time-Proven Unique Techniques that passed on to generations.
At MAXNOVO MACHINE, we strictly enforced that all our contact surfaces must be scrapped with at least 20 spots per square inch
and 40% of contact rate. This can guarantee the True Geometric Accuracy for our high precision machines . Casting is the core of machines, we underscores the importance of its development and production.
At MAXNOVO MACHINE, each casting piece passes various tests, such as high-pressure spray, annealing furnace,
and stress release to assure its stability. This can guarantee all customers with excellent quality of machine parts. The Excellent Quality is our dignity. At MAXNOVO MACHINE, our team is insisting on examining every single part of work-pieces
with strictly high quality standards. In order to fulfill the Large-scale manufacturing requirements in various machine tools, we invested a great deal of resources
and man power in innovating its manufacturing technology. At MAXNOVO MACHINE, the whole machining line is completed
in a temperature-controlled environment so as to maintain this outstanding quality and excellent accuracy. Intensively Production Since 2003 the MAXNOVO MACHINE produces a large part of its metal working machines in its own factory in Yangzhou in China.
There, the quality is controlled by the Germany Quality Management Representatives on-site. The final assembly and commissioning
of our MAXNOVO MACHINE products provide added value and allows perfect long-term working with the machine.
We never compromise on any materials validation and accurate quality control (IQC, IPQC, OQC) from start to finish.
From all the production material even a single resistor or a single cable, to hardware functions and sample test,we check
all the components and each possible performance of them. With every product we supply, we will make sure there is no mistake.
But due to some unavoidable reasons, if your purchase products from us are proven to be defective,we always
would take responsibility and take effective actions immediately for you.
FAQ :
1. Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.

2. Question : How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.


3. Question : What is the average delivery time ?
Answer : Most of the time, it would be around 2 -- 3 month since after confirm receiving customers' contract money. For mass production purchase order at big quantity, the delivery time could be discussed with each other case by case.

---
