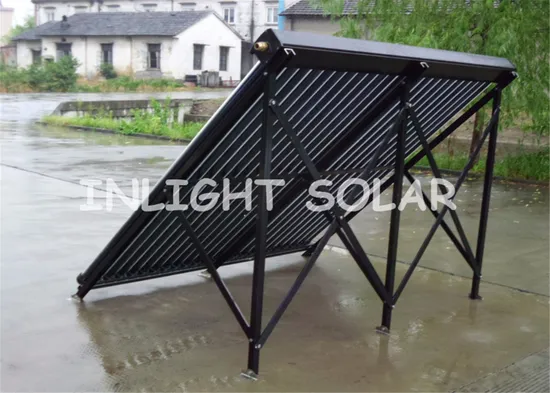

24tubes Aluminum Alloy High Pressure Heat Pipe Solar Collector

Product Description

24Tubes Aluminum Alloy Heat Pipe Solar Collector
1. Certificate: ISO9001, CE, CCC, EN12975(solark Keymark), OG-100(SRCC);
2. Professional and experienced manufacturer, good quality with competitive price;
3. Offer samples for evaluation;
4. Accept OEM orders; Detailed Photos
Product Description
Products specifications and details:

Heat Pipe Vacuum Tube	Size (mm)	Φ58×1800
	Tubes (pcs)	12 / 15 / 18/ 20 / 24/ 25 / 30
	Material	Three-target vacuum tube, red copper heat pipe, aluminum fin
	Coating	Cu/SS-ALN(H)/SS-ALN(L)/ALN
Aluminum Alloy Manifold	Flow passage	High-quality red copper Φ35*1.0mm
	Outer shell	Aluminum alloy plate 2mm
	Insulation	Processed high-density rockwool/ polyurethane
Frame and Bracket	Aluminum alloy 1.8~2.0mm
Accessories	Stainless bolts & nuts, dust-proof rubber seal, plastic tube holder
Working Pressure	2.0-7.0 bar
Tilt Angle	10°~ 80° (ensure the best heat efficiency for gravity heat pipe)
Hail Resistance	≤ Φ25mm diameter
Anti-freezing	≤ -40°C

The heat pipe solar collector consists of heat pipe glass vacuum tube, pressurized manifold, supporting bracket and other related accessories
1) Solar heat pipe and its inner medium for thermal conduction, with a quick start and super daily efficiency about 55% in summer and 42% in winter, much more than that of the all-glass tube
2) The flow passage is inner closed and pressurized, no water or medium goes through glass vacuum tubes, no freeze to break vacuum tubes, able to serve in extremely cold weather
3) Heat pipe tip is inserted into a closed cannula welded into the copper flow passage, collector works well even withdrawal one or several heat pipe vacuum tubes
4) Aluminum alloy as bracket with super performance in chemical resistance, universal bracket suitable for slope and flat roof installation
5) Modularized collector, arbitrary combination with any architectural structure, adaptable to either slope roof or flat ground or upright walls, almost maintenance free collector
Warranty: 3 years international responsibility for solar collector and 15 years for glass tubes due to original quality problems
Applications:
Domestic hot water for shower, washing. Solar Thermal, Project: such as School, Hospital, Hotel.


Our Advantages
Competitive Advantage:
Pre-sale Service
1. Sample can be offered with sample charge and courier fee by buyer's side.
2. We can deliver within short time.Many styles for you to choose.
3. OEM and ODM order are accepted, Any kind of logo printing or design are available.
4. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
5. All of our products are produced by our professional workmen and we have our high-work-effect foreign trade team, you can totally believe our service.
6. We have rich experience of design, manufacture and sell solar water heater, we cherish every order from our honor.

---
