Compact Two Roll Open Rubber Mixing Mill Manufacturer (xk-560) , Silicone Mixing Mill, Rubber Two Roll Mill, Compound Mixing Mill

Product Description

Compact Two roll open rubber mixing mill manufacturer (xk-560) ,silicone mixing mill ,rubber two roll mill ,compound mixing mill
Supply Range
Model : xk-160 ,xk-250,xk-300,xk-360,xk-400,xk-450,xk-560,xk-660, xk-710
Gearbox : ZSF series hardened teeth gearbox ,Guomao brand
transmission system: roller ball bearing bush , bearing is from Wafangdian
gap adjustment : manual adjustment , motorized adjustment
lurication : manual type , automatic type , grease oil , thin oil
stock blender : silicone material type , hard rubber type
safety device : emergency stop button + knee touch + foot kick + electric-hydraulic brake device
Product Description
Rubber mixing mill is used for mixing and kneading raw rubber, synthetic rubber, thermoplastics or E.V.A.with chemicals into final materials. The final materials can be fed to calender, hot presses or other processing machine for making rubber or plastic products.

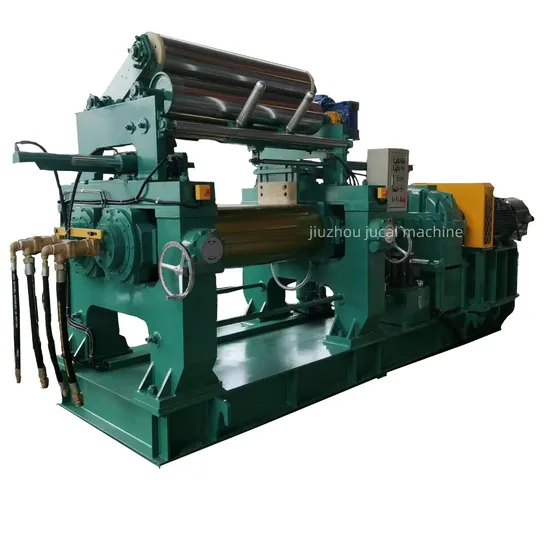

Machine Display
Product Parameters

Parameter/model		XK-160	XK-250	XK-300	XK-360	XK-400
Roll diameter(mm)		160	250	300	360	400
Roll working length (mm)		320	620	750	900	1000
Capacity (kg/batch)		4	15	20	30	40
Front roll speed (m/min)		10	16.96	15.73	16.22	18.78
Roll speed ratio		1:1.21	1:1.08	1:1.17	1:1.22	1:1.17
Motor power (KW)		7.5	18.5	22	37	45
Size (mm)	Length	1104	3230	4000	4140	4578
	Width	678	1166	1600	1574	1755
	Height	1258	1590	1800	1800	1805
Weight (KG)		1000	3150	5000	6892	8000

Parameter/model		XK-450	XK-560	XK-610	XK-660	XK-710
Roll diameter(mm)		450	560/510	610	660	710
Roll working length (mm)		1200	1530	2000	2130	2200
Capacity (kg/batch)		55	90	120-150	165	150-200
Front roll speed (m/min)		21.1	25.8	28.4	29.8	31.9
Roll speed ratio		1:1.17	1:1.17	1:1.18	1:1.09	1:1.15
Motor power (KW)		55	90/110	160	250	285
Size (mm)	Length	5035	7100	7240	7300	8246
	Width	1808	2438	3872	3900	3556
	Height	1835	1600	1840	1840	2270
Weight (KG)		12000	20000	44000	47000	51000

1.Are your company a trading one or a factory?
Factory + trade (integration), 30 years focusing on rubber machine design and production .
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of product you need to do and the required specification.
3.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
4.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change,
necessarily, our engineers may go to your place for better service.
5.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won't be damaged. We've delivered many testing machines abroad by sea or by air without damage.
6.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment -packing - delivery - customer receiving - after service.

---
