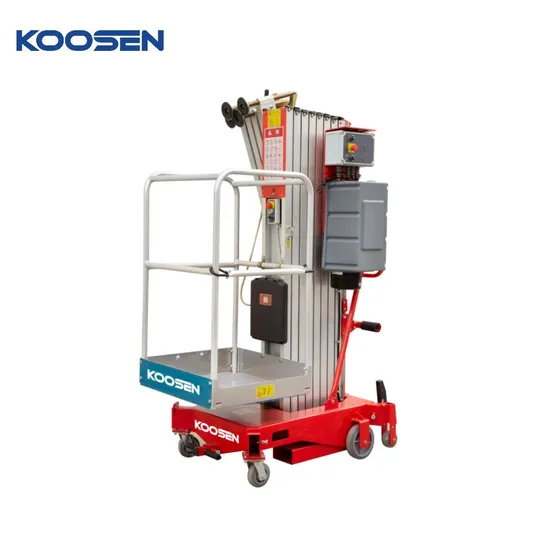

Low-Level Access Aerial Work Platform Push Around Vertical Mast Lift

Product Description

Product Description
The Koosen Materials lift is Cost Effective Solutions, it is well suited for construction work,industrial applications,HVAC installations, and repairing HVAC components, shipping/receiving, lifting heavy material to or from shelves, installing lifting and moving automotive parts, transporting computer and server components It can be easily operated by one person to lift, lower and move heavy loads. The lift Also can be used as a hand truck, forklift or dolly.
Product Parameters

Model	SLA-10	SLA-15	SLA-20	SLA-25
Max Working height	3.50m	5.00m	6.50m	7.90m
Fork Size	700*575mm	700*575mm	700*575mm	700*575mm
Working Height(Fork UP)	3.50m	5.00m	6.50m	7.90m
Working Height(Fork Down)	3.00m	4.50m	6.00m	7.40m
Overall Length(Working)	2.03m	2.03m	2.03m	2.03m
Overall Width(Working)	1.82m	1.82m	1.82m	1.82m
Overall Height(Working)	2.01m	2.01m	2.01m	2.01m
Ground Clearance(Working)	0.04m	0.04m	0.04m	0.04m
Working Loading Center(40mm)	400kg	350kg	300kg	250kg
Working Loading Center(60mm)	350kg	300kg	250kg	200kg
Working Loading Center(80mm)	250kg	250kg	200kg	150kg
Stowed Length	0.74m	0.74m	0.74m	0.74m
Stowed Width	0.84m	0.84m	0.84m	0.84m
Stowed Heigth	2.05m	2.05m	2.05m	2.05m
Stowed Ground Clearance	0.07m	0.07m	0.07m	0.07m
Weight	166kg	188kg	211kg	232kg

Detailed Photos
Company Profile

Exhibition

Packaging & Shipping


FAQ

1.Q:How about your delivery time?
A: 5 days to ship if in stock, 25 days if it need to re-produce.
2.Q:Why should I choose from you?
A:Koosen have rich experience to choose suitable equipment to you,as we have been in this line over 13years.Moreover,our products are highly competitive,both in quality and price.
3.Q:What about your warranty time?
A:Generally,the product warranty period is 12 months for key components since you receive it..
4.Q:What should we do if there have quality problems?
A:Pls send picture or video about the broken part to us,we can provide technical support and free spare part of key parts within 12 moths. 5.Q:What payment methods do you support?
30% deposit and 70% balance will be paid in 3 working days after get copy B/L. 6.Q:What is your trade terms?
We have EXW, FOB, CIF, CFR for you to choose, and we can change according to your requirements. 7.Q:Are you factory? Yes,we have our own factory. 8: Can I visit your company? Of course at anytime. 9, Do you support customization? Yes.We not only provide standard products,but also support customized products. Recommend

---
