12/24 Cores MPO MTP Sm Om3 Om4 Om5 Fiber Optic MPO Fiber Cable

Product Description

12/24 Cores MPO MTP SM OM3 OM4 OM5 Fiber Optic MPO Fiber Cable
MTP/MPO-LC patch cords are used to make the interconnections between the MTP/MPO cassettes or connections to active equipment with MPO/MTP interface. In cases where an MTP/MPO-LC patch cord is connected (through an MTP coupler) to another MTP patch cord, one of the two MTP/MPO connectors must be male (equipped with pins).
SPECIFICATIONS

Item	LC,SC,ST,FC.......	MPO
End face type	PC,UPC and APC	PC and APC
Fiber type	SM(G652,G655,G657);MM(OM1-OM5)
Core number	12,24
Cable Diameter	0.9,2.0,3.0	Mini Round cable:Max4.5mm; Ribbon cable:Max3.0*5.0mm
Insertion loss(dB)	≤ 0.3	Standard:≤0.35/0.75(Typical/Max) Low Loss:≤0.2/0.35(Typical/Max)
Return loss(Min)	UPC SM:50dB APC SM:60 dB PC MM:35 dB	SM: APC:60 PC:50	MM: APC:30 PC:25
Test Wavelength(nm)	SM:1310/1550 MM:850/1300
Repeatability	≤ 0.1dB
Durability	≤ 0.2dB
Interchangeability	≤ 0.2dB
Operating Temperature	-20ºC~70ºC
Storage Temperature	-40ºC~80ºC
Outer Sheath Material	PVC,LSZH,PU

Bending radius(Static/Dynamic)	10D/20D
Length	Customized

ORDERING OPTIONS

Fiber Type	Cable Type	Connector	Boot Size	Boot Color	Polishing Type	Length
SM: 9/125μm	Simplex(2-fiber)	Male	2.0mm	Black	PC	Customized
MM: 50/125μm	Duplex	Female	3.0mm		APC
MM: 62.5/125μm	Ribbon		Ribbon
MM: OM3	Breakout

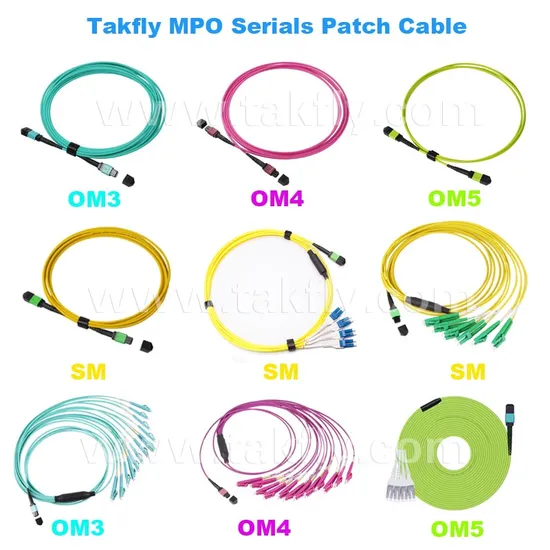

Feature: MTP/MPO connector type available in Male and Female. MPO Female connector is without PIN, MPO male connector with PIN. Fiber type available in single-mode (G652D, G657A1, G657A2), multi mode (OM3, OM4, OM5). MPO MTP connectors Insertion loss type: available in Standard, Elite / Low Loss. MPO/MTP connector types have 4/8/12/16/24/32/48 fiber. Cable diameter normal is 3.0mm round cable, we also have flat cable, 4.5mm double shealth cable, armoured cable, ect. MPO/MTP patch cord has A type, B type, and C type ( fiber arrangement). Length can be customized according to your requirements. MPO patchcord can be MPO-MPO, MPO-LC, MPO-FC, MPO-SC, MPO-E2000, MPO-ST, MPO fan-out cable patch cord, MPO breakout cable patch cord, etc. Factory terminated & tested with guaranteed quality: End face test, polarity test, insertion loss and return loss test, 3D test,ect. High density to dramatically save space
MPO/MTP Serial Products we produce: MPO/MTP Trunk Cable
2. MPO/MTP Harnesses Cables
3. MPO/MTP Fan out 0.9mm Patch Cords
4. IP-Series MPO/MTP Assembly
5. High Density Patch Cords: MPO/MTP-LC/SC/FC/ CS, ect. 6. MPO/MTP Loopback
7. MT Patch Cords
8. MPO/MTP Cassettes
9. MPO/MTP Fiber Optic Patch Panel Applications
Telecommunication Networks
Computer networks
CATV networks
FTTx Termination
Gigabit Ethernet
With 21 years manufacturing experince in Fiber Optic Products, Takfly pay high attention to the production of high quality standard of MPO/MTP products, which include MPO-MPO and MTP-MTP Trunk Cable, MPO/MTP-LC, MPO/MTP-SC, MPO/MTP-FC, MPO/MTP-ST and MPO/MTP-CS breakout cable, MPO/MTP Cassette, MPO Patch Panel, ect.
The advantages of Takfly's MPO products as below: CE, ROHS, CPR, ISO9001 and ISO14001 certified. High performance in insertion loss and return loss. Connector fibers from 2 fibers to 72 fibers. OEM brand is available. Competitive price and fast delivery. If you're dealing with data center and 5G projects, Takfly would be your good choice.

---
