High Quality Factory Direct Supply Universal Tensile Testing Machine for Kinds of Material

Product Description

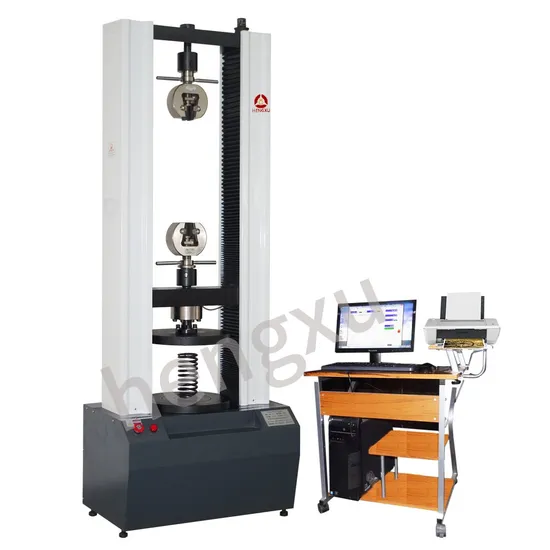

Product DescriptionHDW Series Microcomputer Control Universal Testing Machine
Main Application
This series of tensile testing machines are designed and manufactured according to ASTM, ISO, DIN, GB and other international standards.and suitable for testing the mechanical properties of various metals, non-metals and composite materials such as rubber, plastics, textiles, waterproof materials, wires and cables, net ropes, metal wires, etc. For example, various tensile tests can be easily completed by changing the accessories to complete compression, bending, shearing, tearing, peeling, puncture and other tests. Achieving precision in material testing is important to ensure quality and performance, and the microcomputer-controlled universal testing machine offers exactly that. Equipped with an AC stepper motor and a digital servo speed control system, these electronic universal testing machines provides reliable force application during mechanical tests. Its arc synchronous belt and precision ball screw assembly ensure smooth operation. While primarily used for tensile testing, this testing system easily adapts to other tests, including compression, bending, shearing, tearing, peeling, and puncture, by changing fixtures.
Product Parameters

Name	Computer control universal Testing machine specification
Model	HDW-5	HDW-10	HDW-20	HDW-50		HDW-100	HDW-300
Structure	2 columns
Max. Load(KN)	5	10	20	50		100	300
Load Range	2%~100% full Scale or 0.4%-100% Full Scale
Load Accuracy	±1% or ±0.5%
Resolution of load	1/300000 of full scale
Measuring Range Of Deformation	2%~100%
Resolution of Displacement	0.001mm
Accuracy measure Of Deformation	±1% o r±0.5%
Control Speed	0.1-500(mm/min)						0.1-200(mm/min)
Relative Error of Speed:	≤±1%
Tensile Test Space	650mm
Compression Test Space	650mm
Load Cell Configuration	One(Max Load), more load cells can be added according to customer requirement.
Extend Configuration	Large deformation extensometer, high or low temperature test chamber, high temperature oven.
Protection function	The test machine has the function of overload and limit protection
Test machine size(mm)	730*360*1750			740*500*1820	800*480*1870		1130×650×2650
Power Supply	AC110V / 220V / 380V±10%, 50Hz-60Hz
Weight(KG)	300			350	400		1500

Application Industry
Our Advantages
Company Profile Jinan HengXu Testing Machine Technology Co., Ltd., established in 2007, is a prominent hightech enterprise specializing in the research, development, and production of testing machines. With a focus on friction wear testing and mechanical testing for advanced materials, the company has become a leading player in China's testing industry. HengXu stands out due to its advanced testing technologies and strong customer trust, achieving over 100 million RMB in sales in 2023.
FAQQ: Are you a manufacturer?
A: Yes, we are a professional manufacturer with many years of manufacturing experience. Our factory is equipped with advanced production equipment and a skilled team, committed to providing customers with high-quality products and services. At the same time, we also welcome you to visit our factory at any time to better understand our production process and capabilities.
Q: How long does it take to produce and deliver?
A: The production and delivery cycle of the equipment is generally 10-20 days, depending on the equipment model and customization requirements you choose. If your order requires customized functions, the delivery time may need to be extended to about 4 weeks. We can provide a detailed delivery plan after confirming your complete requirements. If you have urgent order requirements, please let us know at any time, we will try our best to arrange a priority production plan for you!
Q: How is the equipment transported and protected?
A: To ensure the safety of equipment transportation, we use shock-proof and moisture-proof export-grade wooden boxes for packaging, and all precision parts will be properly handled with foam and protective film.
In terms of transportation methods, we can arrange sea or air transportation, and provide various documents (such as invoices, packing lists, certificates of origin, CE certificates). Before the equipment is packaged, we will complete all debugging procedures to ensure that it can be used after installation.
Q: How long is the equipment warranty period? How about after-sales support?
A: We provide a 1-year warranty service for all friction and wear testers, and provide free technical support and maintenance services (non-artificial damage) during the warranty period. In addition:
Remote technical guidance (such as installation and operation) can be provided;
Support on-site installation and commissioning and operation training when necessary (negotiable fees);
Provide lifetime paid equipment maintenance and supply wearing parts and accessories.
If you need to extend the warranty period or other after-sales service arrangements, please feel free to contact us!
Q: Can the test effect be verified before the equipment is delivered?
A: Of course! After the equipment is produced, you can choose the following methods:
Remote video acceptance: We will show you the equipment test operation and performance;
On-site acceptance: You are welcome to visit our factory for equipment function acceptance;
Provide sample testing: You can send samples to our company, we will shoot test videos for you, and provide detailed reports.
I hope the acceptance method can meet your expectations, and welcome further communication!
Q: We are using this equipment for the first time, can you provide training?
A: We provide detailed technical guidance and training support for all customers who purchase equipment, including:
The operating manual and operation guidance video that comes with the equipment;
Remote installation guidance: Demonstrate the operation steps through online videos;
On-site training (negotiable): If necessary, we can arrange for technicians to come to your factory for installation guidance and training (extra charge).
After the training, we guarantee that your team can operate the equipment proficiently and complete related testing work. Any follow-up questions also support lifelong technical consultation!

---
