XCMG CE Lift Table 30m Used Telescopic Boom Arm Aerial Work Platform Gtbz30s

Product Description

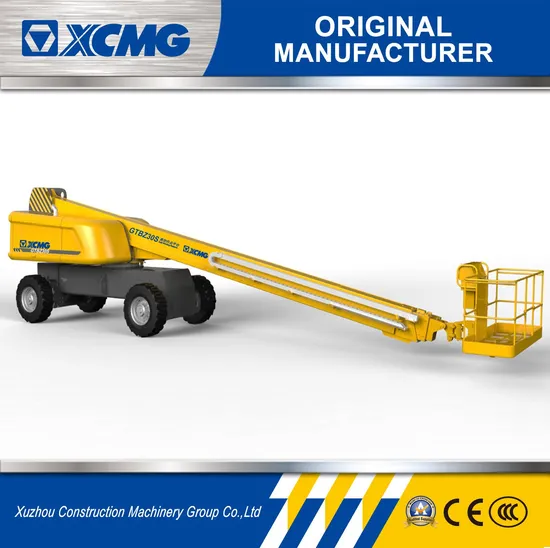

XCMG Used 30m Telescopic Boom Arm Aerial Work Platform Gtbz30s
Product Description
It is a straight boom aerial work platform with the widest scope of application at the elevation of 30 meters. It is featured by: the widest scope of application among the products operating under the same elevation to enhance the ability of operation; the strongest capacity of loading within the industry to satisfy the user's demands on heavy load; and the excellent capacity of climbing drive to adapt itself to all kinds of complicated road conditions. The machine may be widely used for building operations, bridge & equipment maintenance, shipbuilding, petrochemical engineering and other related industries.
Super-Strong Capacity of Climbing Drive
The electronic steering and wide foam tyres both attribute to an excellent capacity of climbing drive, thus adapting itself to all kinds of complicated road conditions.

Strongest Capacity of Loading within the Industry
The maximum capacity of loading, i.e. 480kg, ranks the first within the industry, thus satisfying the user's demands on heavy load.

Excellent Working Range
The double-load operating-curve control technologies realizes a real-time monitoring over loads, thus producing a strong capacity of operation, as well as a widest working range at the same elevation.
Advantages and highlights:
1.Offer Test Report of Professional Institute.
2.Details Of Maintenance And Repair Items Included.
3.Price Concessions.
4.Official Factory Sourcing.
5.Reconditioning Directly From XCMG.
6.Vehicle Condition of Perfection.
7.XCMG Official Endorsement.
8.SGS Provides The Third-Party Inspection Certificate. Product Parameters

Item	Unit	Parameter
a Overall Length	mm	13380
b Overall Width (shaft retracts/stretches)	mm	2490/3800
c Overall Height	mm	3070
d Wheel Base	mm	3800
Maximum Working Height	m	32.2
Maximum Platform Height	m	30.5
Maximum Working Range	m	23.1
Maximum Working Height ( Unrestricted/Restricted )	kg	340/480
Boom Luffing Range	°	-11~+75
Rotation Angle of Rotating Platform	°	360°
Maximum Tail Wagging ( shaft retracts/stretches )	mm	2085/1430
Platform Size	mm	2400×900
Rotation Angle of Platform	°	180
Total Weight	kg	18300
Maximum Travel Speed	km/h	5
Minimum Turning Radius ( shaft retracts/stretches )	m	10.8/8.2(Two-turn) 6.8/5.8(Four -turn)
Minimum Ground Clearance	mm	260
Maximum Grade Ability	%	45
Tire Specification	-	385/65D22.5
Engine Model	-	Perkins 1104D-44T
Rated Power of Engine	kW/(r/min)	55.5/2400
