Thermal Bonding Oven &Dryer Machine &Low Melt Fibers &Nonwoven Machine

Product Description

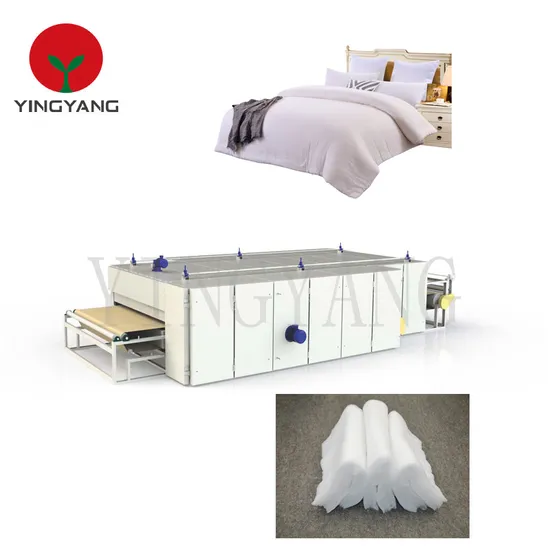

Thermal Bonding oven &Dryer Machine &low melt fibers &nonwoven machine
Product Description
Function
The series of soft thermal oven, equipped with centrifugal fans of low-noise and high-temperature resistance, and automatic temperature control system as well, makes more full use of thermal efficiency, greatly reduces energy consumption and improves economic benefit.
Product Parameters
Main Specification

Working width	≤4000mm
Heating Chamber Length	6m, 8m, 10m,12m
Heat setting temperature	≤200ºC
Working speed	≤20m/min

Structure:
single belt thermal-bonding oven, double-belt thermal-bonding oven
Heating source: hot oil circulation, gas burner heating, diesel oil burner heating, electricity heating
Installed power: 17.2KW(Electricity heating powershould be accord to oven width and length)

Characteristics Compact design for heating chamber to achieve the best heat energy utilization. Unique design for thermal insulation layer so as to achieve the best insulating result, reducing heat loss The distance between upper air channel and conveyor belt can be automatically adjusted according to the thickness of the web.
Main Products

Main Products
Bale opener	Blending machine	Vibration feeder	Carding machine
Cross lapper	Drafter	Needle punching machine	Oven
Ironing machine	Winder and cutter	Edge-trim opener	Velour loom
