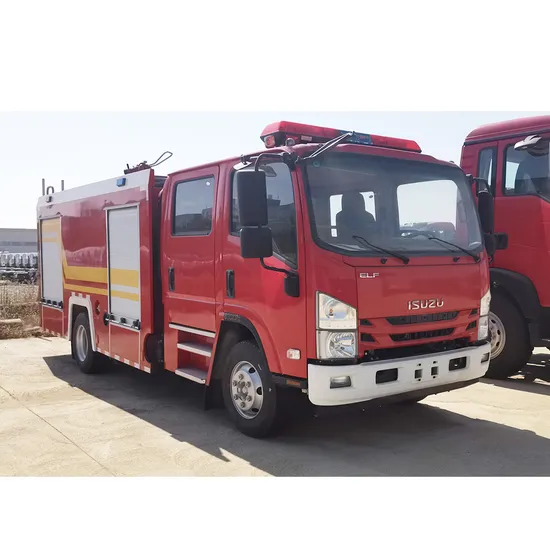

5cbm Water Foam Fire Truck 130HP 4X2 Fire Fighting Truck with Water Pump

Product Description

5cbm Water Foam Fire Truck 130HP 4x2 Fire Fighting Truck With Water Pump
We have professional team for trading enterprise, specialized in the export of special vehicles,normally trucks and machines and all kinds of attachments, around 13 years of experiences, professional and constantly innovation, professional producing line, every serious careful assembly workers,and Specialized testing.
We ensure every trucks and vehicles that you received has very reliable quality and stability.
Detail pictures show
Specification

Chassis	Brand		ISU ZU
	Chassis Model		QL1160AFRY
	Drive Mode		4X2
	Tire Type		10.00-20
	Brake		Air brake
Engine	Model		6HK1-TC
	Horsepower(HP)		240
	Displacement(m3)/Power(kw)		7790/177
	Emission		Euro IV
Main Parameter	Overall Dimension(mm))	L*W*H	8105*2480*3365
		Wheelbase	4500
		Axle No.	2
	Weight(kg)	Gross Weight	16000
		Payload Weight	5500
		Kerb Weight	9650
	Tank	Material	Water tank:Carbon steel Foam tank:Stainless steel
		Thickness	4mm
		Capacity	8000L Water tank+2000L Foam tank
	Leaf Spring No.		9/7+7
	Approach/Departure Angle(°)		26/14
	Front/Rear Track(mm)		1960/1855
	Max.Speed(km/h)		95
	Gear Box		6 speed gearbox
	Front/Rear Axle Load		6.3T/13T
Fire Fighting Monitor		Model:PL24-48, Flow rate:48L/S/1Mpa Water Monitor Range:>=65m Pressure:1.0Mpa Horizontal rotation angle : 360 ° Pitch angle : -15 ° to +60 ° Mounting position: top compartment
Fire Fighting Pump		Pump Model:CB20.10/30.60, flow rate:40L/S, pressure:1.0Mpa Time of draining water:<=35s Full Power PTO Water depth : 7m Mounting: Rear
Cabin		Flat Roof Can with A/C Double Row

Trucks Shipment
FAQQ1.You are factory or trading Company?A:We are overseas sales department of SINOTRUK automobile with 14 years experience and you are always welcomed to visit our factory.
Q2.Could your company modify the standard product depends on my request? A:Yes. Our company is specialized in researching and designing various of special purpose vehicle and spare parts. We can provide any product according to your demand.
Q3.Could your company totally customize products for me?A:We can provide the customized-designing product meeting with any of your demand.
Q4.Could you provide certification that we need?A:We can provide various certifications associated with trailer and truck. Such as DOT, ADR, SASO and so on.
Q5.How long could we receive our goods?A:It depends on the product that you have ordered. If the goods are prepared, we will deliver your goods as soon as possible.Usually it takes 30~35 days to produce them.
Q6.How about the after-sale service?A:We can provide you the technical support to guide you repaire your product. And we will also send original spare parts free of charge by air. If you have special need, we can let our engineer to help you in person.Remember the guarantee period is one year or 12 months.
Buying Guides for Trucks and Special Vehicles
**You please send us your enquiry;
**We shall reply you with the quotation within 12 hours;
**We negotiate on the configuration that you need;
**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
**Manufacturing process updated news → completing production;
**Balance payment → ex works → shipment → custom clearance → A/S service for
1 year.

---
