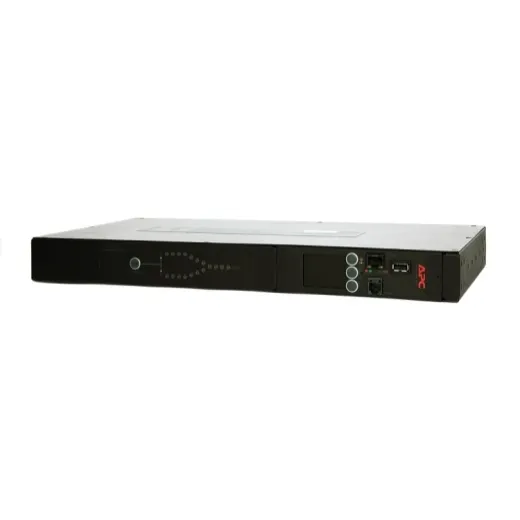

APC Rack ATS, 230V 16A (2) IEC 309 in (1) IEC 309 out Ap4422

Product Description

Automatic transfer switches (ATS) are critical components of any emergency or standby power system. Transfer switches are reliable, rugged, versatile and compact assemblies for transferring essential loads and electrical distribution systems from one power source to another. Rack ATS, 230V, 16A, (2) IEC 309 in, (1) IEC 309 out AP4422 Features Key Features Rack Height
1U
Nominal Output Voltage
230V
Nominal Input Voltage
230V
Input Connections
IEC 60309 16 A 2P + E
Cord Length
2.4meters Technical Specifications OutputCord Length
0.9meters
Maximum Total Current Draw
16 InputInput frequency
50/60 Hz
Number of Power Cords
2
Load Capacity
3840VA
Maximum Input Current
16A
Maximum Line Current
16A PhysicalMaximum Height
44MM, 4.4CM
Maximum Width
432MM, 43.2CM
Maximum Depth
236MM, 23.6CM
Net Weight
4.21KG
Shipping weight
5.95KG
Shipping Height
114MM, 11.4CM
Shipping Width
600MM, 60.0CM
Shipping Depth
349MM, 34.9CM
Color
Black EnvironmentalOperating Temperature
-5 - 45 °C
Operating Relative Humidity
0 - 95 %
Operating Elevation
0 - 3048meters
Storage Temperature
-25 - 65 °C
Storage Elevation
0 - 15240meters Conformance Approvals
CE, EMC directive 2004/108/EC, EN/IEC 60950-1, Low voltage directive 2006/95/EC, UL 60950-1

---
