Made in China Vacuum Forming Machine Thermoforming Machine for Making Plastic Pallets

Product Description

Product Description
Parameters.
PD-SF710 Technical Parameters

NO.	Technical specification	Technical Parameters
1	Maximum molding area	710mm×1200mm
2	Minimum molding area	420mm×300mm
3	Widest sheet	740mm
4	Narrowest sheet	460mm
5	Molding thickness	0.2-2.5mm
6	Molding height	180mm
7	Pulling accuracy	±0.5MM
8	Length of upper furnace	1250mm
9	Length of lower furnace	1250mm
10	Total power of the upper furnace	22KW
11	Total power of the lower furnace	22KW
12	vacuum pumps	5.5KW
13	drive motor	10KW
14	Pull motor	5.5KW
15	Total power of equipment	68KW (Normal use of power:40-60KW)
16	vacuum volume	200m3/h
18	Cooling method for product molding	3HP water cooling (complimentary)
19	Total gas supply (external)	0.6-0.8Mpa
20	power supply	380V/50HZ(4+1 cable 50m²)
21	track	iron girder
22	Tab Chain	Double-row B-chain of KMC(Taiwan)
23	Total weight of equipment (reference)	4.5T
24	Machine Size	8000×1800×2500mm (Actual design prevails)

Configuration parameters of PD-SF710

No.	Name of Component	Brand & Description
1	PLC	Delta (Taiwan)
2	module	Delta (Taiwan)
3	touchscreen	12 inch color touch screen(Taiwan)
4	converter	Delta (Taiwan)
5	Servo motor for sheet pulling	Delta (Taiwan) 5.5KW
6	Servomotor for molding up	Delta (Taiwan) 4.5KW
7	Servomotor for molding down	Delta (Taiwan) 5.5KW
8	Beam adjustment motor	TESECH(Taiwan) -0.75KW
9	Loading frame motor	TESECH(Taiwan) -0.75KW
10	Cutter motor	TESECH(Taiwan) -0.75KW
11	Intermediate moving motor	TESECH(Taiwan) -60W
12	Loading racks retrofitted with sprayed silicone oil	MeijiA-100
13	Spraying anti-static on the outlet	MeijiA-100
14	Temperature control module	Aoyi
16	pushbutton switch	Schneider (France)
17	relay	OMRON (Japan)
18	alternating current contactor	Schneider (France)
19	Thermal Overload Relay	Schneider (France)
20	Vacuum Angle Seat Valves	China
21	solenoids	AT&T(Taiwan)
22	air component	AT&T(Taiwan)
23	Precision Regulators	AT&T(Taiwan)
24	Speed control valves	AT&T(Taiwan)
25	cylinder	AT&T(Taiwan)
26	Pushbutton switch	OMRON(Japan)
27	Limit travel switches	OMRON(Japan)
28	Safety light curtains	FOTEK(Taiwan)
29	Sheet photoelectric sensors	FOTEK(Taiwan)
30	Linear guides	ABBA(Taiwan)
31	ball screw	ABBA(Taiwan)
32	timing pulley belt	GATES(America)
33	bearing	C&U(China)
34	Chain Gear	ZhengMeng(Taiwan)
35	vacuum pumps	Yuzhouxing AC200 0
36	chiller	3HP Industrial chiller
37	Upper Furnace Heating Brick	6 rows*10 rows, 60 pieces 600W infrared ceramic heating bricks

Product Description
PD-SF710 Automatic High Speed Servo Machine

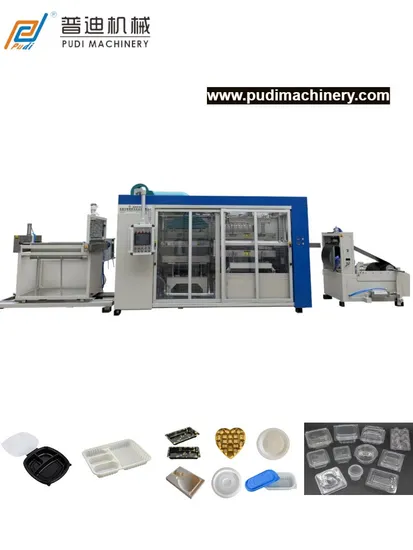

Machine overview of PD-SF710
1.PDSF-710 type vacuum suction servo molding machine, using microcomputer and industrial control programmable PLC control, the whole system HMI (Human Machine Interface). Chinese interface, the machine has a button operation and all the process parameters including setting and modification, so that the equipment is easy to operate and maintain.
2.Use: for HIPS, PS, PP, PVC, APET, PETG and other plastic sheet molding, processing of highly transparent, high stretch, shallow stretch, round, square, irregular, up and down the two-way stretching, flap and other products. Produce all kinds of food packaging, medical packaging, toy packaging, industrial packaging and other packaging products.
3.Machine body: welded or spliced with steel structure profiles, the overall steel structure frame has enough strength and rigidity. All metal surfaces are treated with antirust treatment and bottom sprayed with antirust paint; common and standardized parts are used in the structure, which is convenient for maintenance and replacement of all parts in the later stage.
4.The whole machine is divided into manual / automatic mode of operation, all the settings of the operation in the touch screen to achieve; when the operator will be placed in the material according to the automatic start equipment to complete a whole process of molding technology, manual is mainly used to change the mold or starting sample control.
Detailed drawing of the machine
The specificities of PD-SF710
1.The machine selects PLC control, can operate all functions in the touch screen.
2.Pulling piece using servo motor control, can be adjusted to different speed or length, faster, accurate, stable, and at the same time with the material exit function, to avoid material waste.
3.Mold table lifting is driven by servo motor, can be independently divided into rising and falling, to meet the different heights of products, to the fastest speed production.
4.The electric furnace adopts voltage temperature control, which makes the temperature more moderate, easy to control and low power consumption.
5.Built-in water transportation cooling system with chiller cabinet cooling molding, while equipped with heat insulation board, beam water transportation, more quickly.
6.Equipped with product number counting function.
7.The production efficiency is about 10 seconds cycle.
8.PLC program has been set up in 100 groups of memory system, the user can be related to the production of parameters downloaded in the memory file, to be repeated when the production is taken out to use, convenient and time-saving.
9.Product cooling is air-cooled and spray cooling, which can be chosen at will.
10.Mold change time is very short, 5-10 minutes.
Energy interface (provide if needed)
1.Electricity: three-phase five-wire 380V.
2.Gas: 1 inch compressed air interface, pressure 0.6-0.8MP.
3.Customers provide their own air storage tanks, air compressors and cold dryers.
Applicable scenarios
This vacuum forming machine is an efficient and multifunctional blister forming equipment, specially designed for the production of disposable packaging boxes, coffee cup lids, plastic trays and other products. Using advanced vacuum forming technology to /ensure product quality and consistency.
