Circular Saw Blade Grinding Machine for Tct Face & Top Angle Sharpening

Product Description

TFE800 CNC-controlled TCT Top and Face Sharpening Machine

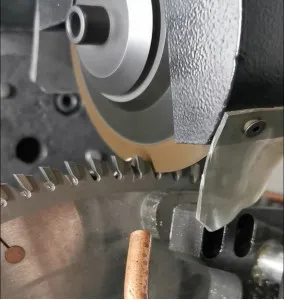

Application: This model is designed for resharpening service of carbide tips top and face angle grinding,precision is controlled below:0.02mm, efficiency is 4-20s/tip.
High-level productivity & precision grinding machine for TCT tips grinding.
• Saw Dia: <800mm
• Function: Tooth Top and Face angle sharpening
• Precision: <0.02mm
• Pitch: <105mm
• Model: TFE800
• High precision, more function & more productivity, PURCHASE is cost-effective.
• Cooperation Company



Advantages of saw blade sharpener • More precision- grinding precision: <0.02mm,be impressed by the higher accuracy. • More efficiency- experienced productivity on a higher level • More user comfort- simplify your work • More flexibility-for precision in any requirement
• More Function- grinding TOP & FACE of saw blade
Technical Premeter

Description	Sepecification
Saw Blade Diameter (mm)	800
Face Angle (°)	0 ~ -27
Top Angle (°)	8 ~ 30
Chamfer Angle of Top (°)	45 ~ -45
Chamfer Angle of Face (°)	30° ~ -30°
Tooth Pitch (mm)	< 120
Bore Diameter (mm)	12-120
Wheel Diameter (mm)	125*32
Wheel Speed (r/min)	4000~5000
Grinding Speed (mm/s)	1~20
Grinding Effciency for Face Angle (s/tip)	4.5
Precision (mm)	<0.02
Power (Kw)	4
Dimensions (mm)	1800 *1200 *2030
Weight (kg)	1600

Configuration

Ball Screw	IF(Germany)
Roller Guide	HIWIN(Taiwan)
Pneumatic Parts	SMC(Japan)
Servo Motor	Inovance
PLC	Inovance ARM600
Harmonic Drive	Inovance

Configuration
4-axes CNC Controlled with 4 servo positioning system,ensure the angle grinding with higher accurate.

CNC Control- High Precision is flexible to control ultra-precision grinding as requirement. HANDWHEEL is good for faster adjustment.

3-D Models
If you need this model,please contact with me:
Package
FAQ 1. Whats your cooperation companys?
2. What doesTORSEL offer?
- High Productivity & Efficiency Grinder
TORSEL Sharpeners controlle grinding precision:<0.025mm,griding efficiency:4-20s/tip, top and face grinding can be finished in one set-up.
It is both working for saw blade manufacturing and resharpening service
- Best quality with top configuration
Please refer to configuration of grinders,all the components are top brand in industrial,this makes the grinder operate with stability and longer service life.- High Precision<0.025mm3. How is the performance of TORSEL saw blade grinding machine?- TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years.
4. How to do if I can not operate?
If you have operation problem when you get the sharpeners, we will make video meeting to teach you. If video teaching can not solve, our engineers will go to your place, and all charges paid by customer's side. 5. How to get spare part after warranty
One of our sharpeners is working for Korea Resharpening service for 15 years,we still serve with after sale service.
If buyers need spare parts,or there is any problems after waranty, we will always responsible for TORSEL sharpeners, including find problems, send spart parts, and teach you to replace the parts.
If you need to learn any information

We are online for your service.

---
