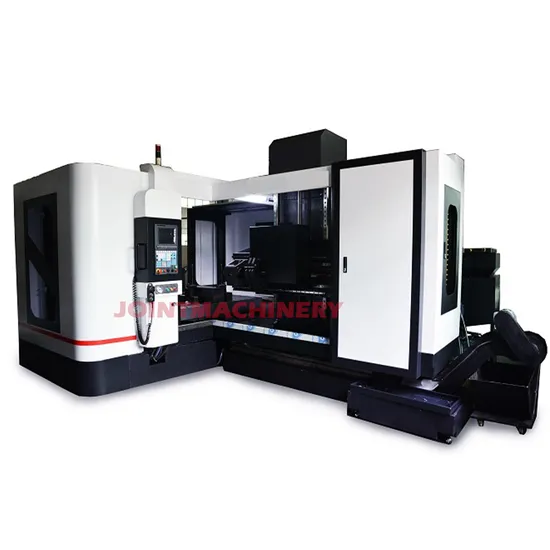

BTA CNC Deep Hole Drilling Machine for Metal with Max Depth 800mm

Product Description

Drilling represents the cornerstone of machining operations and stands as a pivotal process with vast applications across diverse fields. Traditional equipment like bench drills, milling machines, and radial drills have constrained operators, compelling them to repetitively engage with machines, often compromising on quality. Concerns surrounding safety, efficiency, and processing limitations have long been a hindrance for both manufacturers and operators. However, the rise of the CNC era has revolutionized this landscape. The advent of the CNC deep hole drilling machine has liberated the operators' hands, effectively overcoming the challenges associated with deep drilling. It enables one-pass drilling to achieve the precision of conventional drilling machines in drilling, enlarging, and expanding tasks. Additionally, it facilitates automatic chip removal, CNC positioning, and automated processing, marking a significant leap in technological advancement.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

Shenzhen Joint Machinery Co., Ltd. is proud to present its precision CNC deep hole drilling machine, a versatile solution engineered for a variety of workpieces requiring intricate deep hole processing:
√ Die & Mould Industry: Ideal for crafting water transport holes, center holes, hot runners, guide roller holes, and more.
√ Automotive Industry: Perfect for deep hole processing in cylinder heads, crankshafts, hydraulic tubing, plunger bushings, etc.
√ Oil Pump & Lubricating Nipple Industry: Specialized for deep hole work in oil-injection gas components, nozzle valves, plunger bushings, among other vital parts.
√ Textile Machinery Industry: Expert in mesopore processing for a wide range of spindles.
√ Medical Equipment Industry: Masterful in axial processing within titanium alloys, stainless steel, and other high-grade materials.
√ Mining & Oil Machinery: Designed for deep hole applications on piston rods and cylinder walls, ensuring robust performance.
√ Electrical Power & Steam Turbine Industry: Delivers excellence in deep hole processing for rotors, central spindles, valve spindles, unit outer cylinders, and condenser tube plates.
BTA CNC Deep Hole Drilling Machine for Metal with Max Depth 800mm

Model	Unit	DH-800
Inner diameter of drilling	mm	2.5-25
Max depth of drilling	mm	800
Table size	mm	1200*570
X axis travel	mm	800
Y axis travel	mm	600
Z axis travel	mm	800
Cutting feeding	mm/min	1-200
Max rotary speed of spindle	rpm	7000
Spindle motor	kw	5.5/7.5
Three axis motor	kw	2.3/2.3/1.5
Pressure of oil pump	kg/cm	0-150
Capacity of cutting tank	L	600
Max load weight of table	kg	3000
Weight	kg	8000
Dimension	mm	3800*2800*2200

Shenzhen Joint Machinery Co., Ltd. stands as a beacon of excellence in the manufacturing and exportation of CNC lathe machines, CNC deep hole drilling machines, and Swiss-type automatic lathes, alongside milling and grinding machines. Our unwavering commitment to superior machine quality and exceptional service has earned us a stellar reputation on the global stage. By integrating cutting-edge technologies from Taiwan and Germany with advanced production methodologies, we assure top-tier product quality and reliability. Our machines are lauded for their unrivaled performance, precision, stability, and dependability, adept at tackling complex machining demands. With a strong global footprint, our products delight customers across Asia, Europe, South America, North America, and beyond. We've forged enduring partnerships worldwide, creating substantial business value in collaboration with our esteemed clients.
