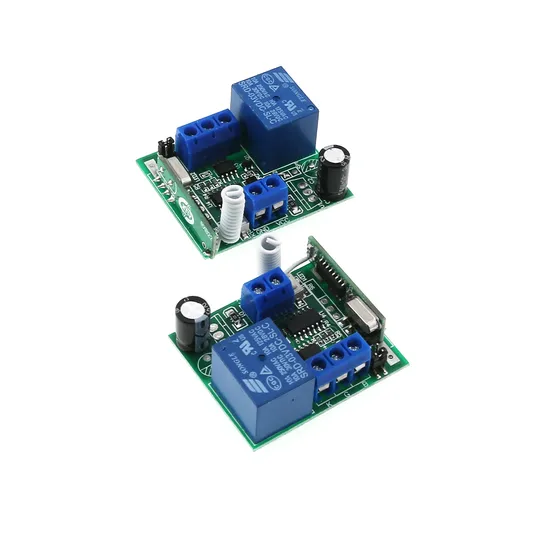

Whoesale 433MHz Switch Wireless Trarsmitter 12V RF Receiver for Roller Shuiter/Electric Gate

Product Description

Operation Method:
1. Match code:
Hold learning button and learning indicator light blinks, then press a buttons of remote control, if indicator lights flashes 3 times, match code successfully. Maximum 20 remote controls can be matched.
Pls note that KL-K103X can learn any data code. It means it can be controlled by whichever button you press on the remote while matching.
2. Delete code:
Hold learning button till the indicator LED lights and then off, delete successfully.
3. Set working mode:
S1 & S2 program the sequence as follows:
Jumper on S1→ Toggl
Jumper on S2→ Latching
No Jumper on S1 &S2→ Momentary
Tech Data:
DC 12V 1-Channel Remote Control Switch KL-K103X

Input	DC 12V (DC9V, 24V is customized)
Channels	1
Working Current	8mA
Working Frequency	433MHz / 315MHz (other frequency is customized)
Receiver Sensitivity	-103dBm
Decoding Type	Learning Code(EV1527) / Fixed Code(2262)
Output Mode	Switching Signal (Dry Contact)
Working Mode	Momentary / Toggle / Latching
Max Load of Relay Contact	7A
Dimension	44*37*20mm

Working Mode:
1. Momentary: Press remote button A, the corresponding relay on the receiver is on; release button A, the relay is off, the same as others.
2. Toggle: Press remote button A, the corresponding relay on the receiver is on; press button A again, the relay is off, the same as others.
3. Latching: Press remote button A, the relay A is on, B is off; press button B, the replay B is on, A is off.
Wiring Way & Diagram:
B=Normally Closed, G=Common, K=Normally Open
