Js Series Twin Shaft Cement Concrete Mixer with Factory Price

Product Description

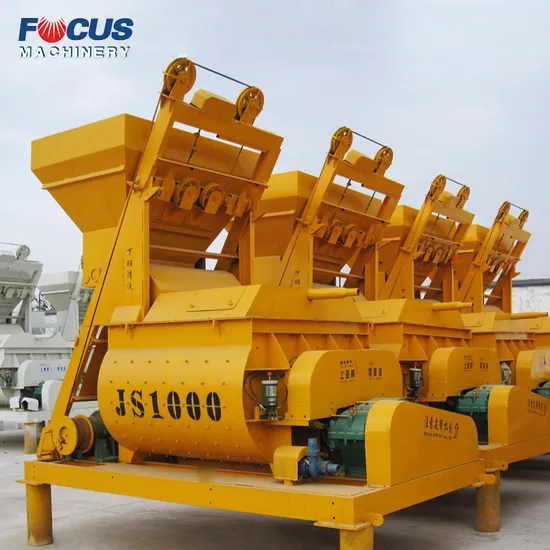

Js Series Twin Shaft Cement Concrete Mixer with Factory Price
JS series horizontal twin shaft cement concrete mixer:
Advantages:
JS Series twin shaft cement concrete mixer can mix the plastic and half-dry hard concrete, fluid concrete and light aggregate concrete.
1. Working condition: Road, Bridge & Precast product for factory, work independently or be used with correspond batching machine as a mini-type concrete plant.
2. Discharge system: Hydraulic & manual mode, drive reposefully and low noise.
3. Inside Mixer: Liner and mixer blade adopts high rigidity wear resistant steel (long service life).
All Sizes of twin shaft cement concrete mixer:
JS500 twin shaft cement concrete mixer, JS750 twin shaft cement concrete mixer, JS1000 twin shaft cement concrete mixer, JS1500 twin shaft cement concrete mixer, JS2000 twin shaft cement concrete mixer, JS3000 twin shaft cement concrete mixer, etc.
Usage:
Our JS Series twin shaft concrete mixer is mainly used in concrete batching plant; JS500 for HZS25, JS750 for HZS35, JS1000 for HZS50 and HZS60, JS1500 for HZS75 and JS90, JS2000 for HZS120, JS3000 for HZS180, they can also be used alone to produce concrete.
Application:
Based on the advantages of driving steady and convenient installation, this key concrete equipment is widely used in the small and medium-sized construction.

Model parameter		JS500	JS750	JS1000	JS1500	JS2000	JS3000	JS4000
Discharge vol.(L)		500	750	1000	1500	2000	3000	4000
Charging vo.(L)		800	1200	1600	2400	3200	4800	6400
Output capacity(m³)		25	35	50-60	75-90	120	180	240
Aggregate size(mm)		80
Working circle(s)		60
Discharge height(m)		1.5-4.1 adjustable
Mixing blade	Speed	31r/min		19.5r/min			21r/min
	Quantity	2x7		2x8			2x10
Mixing motor		18.5kw	30kw	2x18.5kw	2x22kw	2x37kw	2x55kw	2x75kw
Lifting motor		5.5kw	7.5kw	11kw	18.5kw	-	-	-
Pump motor		0.75kw	1.1kw	3kw	3kw	-	-	-
Weight(kg)		4000	5500	8700	9880	10960	11130	13500
Dimension(LxWxH) mm		3030x2300x2680	4550x2250x2450	4640x2250x2250	5058x2250x2440	3810x2480x1710	4220x2620x1910	4450x3050x2380

---
