A2C9318740080 Replaced FORD BK2Q9358 of WILMINK GROUP WG1756212

Product Description

A2C9318740080 Replaced FORD BK2Q9358 of WILMINK GROUP WG1756212
+Fuel Supply System
-Common Rail
-Diesel High-Pressure Pump
-Inlet Metering Valve Ningbo Henshine Precision Machinery Co., Ltd Product Description No: A2C9318740080Name: Inlet Metering Valve/ VDO VCV ValveFuel Injection Pump Inlet Metering Valve IMV A2C9318740080 for PEUGEOT BOXER 2.2HDIA2C9318740080 Pressure Regulating Valve by regulating the amount of fuel supplied to the main supply pump - "pumping elements" which control the output volume and pressure in the fuel rail.
Interchangeable OE Numbers:

VDO	A2C9318740080

Manufacturer	Details

Compatible Vehicles for A2C9318740080: Detailed Photos FIGURE 1: A2C9318740080 shown in the Cutaway of Valve ASSY, Injection Pump A2C59517045
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)

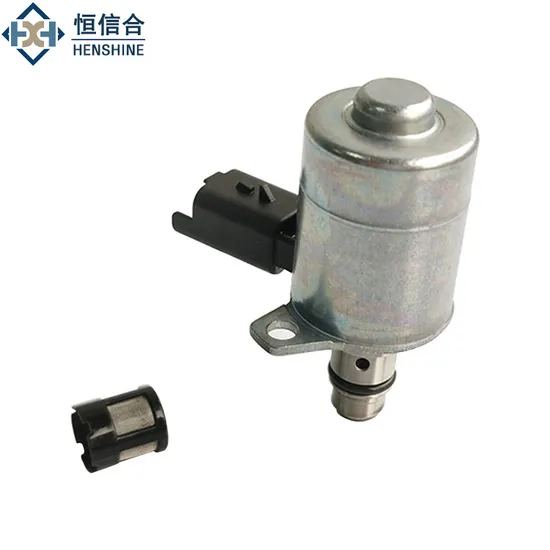

FIGURE 2: VCV A2C9318740080 Pressure Regulating VDO Valve
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
FIGURE 3: A2C9318740080 VDO Fuel Metering Valve with Henshine box
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
FIGURE 4: A2C9318740080 Inlet Metering Valve Ford SIEMENS Injection Pump Henshine
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
FIGURE 5: A2C9318740080 VDO Inlet Metering Valve Packed in Henshine Natural Box
(Courtesy of Ningbo Henshine Precision Machinery Co., Ltd)
No: A2C9318740080Name: Pressure Regulating Valve/ Inlet Metering Valve
Delivery time: 1-3 daysBrand: HENSHINE
Vehicle:
FORD RANGER 2.2 & 3.2
FORD TOURNEO CUSTOM 2.2
FORD TRANSIT CUSTOM 2.2
FORD TRANSIT MK8 2.2
CITROEN JUMPER / RELAY 2.2
PEUGEOT BOXER 2.2
Pump:
A2C59517045, 1717702, 1841728,WG1756212
9678171880 Interchange: High-grade Fuel Pressure Regulator VDO A2C9318740080What Is a Fuel Metering Valve? The fuel metering valve comprises a fuel-cooled solenoid valve. The valve opening is varied by its solenoid coil being pulse width modulated at a frequency of 1 kHz.
Packaging & Shipping Manufacturer Part Number: A2C9318740080
Brand: HENSHINE
Material: plastic, iron
Delivery time: 1-3days
Colour: Silver
Surface Finish: High Quality
Placement on Vehicle: FORD RANGER 2.2 & 3.2 DIESEL 2011-ON
FORD TOURNEO CUSTOM 2.2 DIESEL 2012-ON
FORD TRANSIT CUSTOM 2.2 DIESEL 2011-ON
FORD TRANSIT MK8 2.2 DIESEL 2011-ON
CITROEN JUMPER / RELAY 2.2 DIESEL 2011-ON
PUMP: A2C59517045, 1717702, 1841728,WG1756212
9678171880 Type: Pressure Regulator Valve/Inlet Metering Valve IMV
Packing: carton
Warranty: 1 year

The fuel metering unit includes a fuel metering valve, a metering valve actuator, a fail-fixed valve, a flow increase valve, and a flow decrease valve. The fuel metering unit is configured such that, upon electrical power interruption to the metering valve actuator, the fail-fixed valve shifts and provides a hydraulic lock on the fuel metering valve, to thereby maintain its position. The flow increase and flow decrease valves are powered from a power source that is independent of that used to power the fuel metering unit and when appropriately energized will allow.

Fuel Control Actuator Fuel Metering Valve A2C9318740080 for FORD. The Fuel Control Actuator (FCA) or Fuel Pressure Regulator is an electronically controlled solenoid valve. The ECM controls the amount of fuel that enters the high-pressure pumping chambers by opening and closing the FCA based on a demanded fuel pressure. When the FCA is opened, the maximum amount of fuel is being supplied to the fuel injection pump. Any fuel that does not enter the injection pump is directed to the overflow valve. The overflow valve regulates how much excess fuel is used for lubrication of the pump and how much is returned to the fuel tank through the drain manifold. An audible click from the FCA is normal when operating the key to either the ON or OFF positions.
Henshine is one of the most professional manufacturers and suppliers for suction control valves in China Please rest assured to buy or wholesale high-quality suction control valves made in China here from our factory.NEW High-Quality OEM A2C9318740080 Fuel Pump Inlet Metering Unit. If you want to buy or wholesale diesel suction control valve please contact us.

---
