Diesel Engine River Cleaning Boat Aquatic Weed Harvester

Product Description

Diesel Engine River Cleaning Boat Aquatic Weed Harvester Product Description

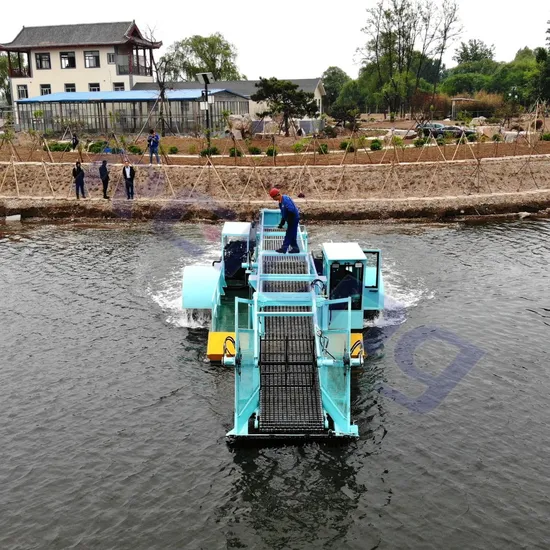

Relong aquatic weed harvester is usually used in river,reservoir,canal and coasts for cutting, collecting, storing and tranporting waterweeds and floating garbage. All the equipment of the ship can work automatically and can save much labor force for its high efficiency.Its hull consists two side pontoons. All the other equipment, including operation room, conveyor belting cabin, engine, are fixed by bolts. It is easy to dismantle for transportation by road, rail or water, and easy to reassemble at project site.
The machine is driven by paddle wheel instead of the screw propeller,which can make sure the wheel is not entangled by the underwater weed.The system is perfectly optimized so that the machine can work efficiently.

Our Advantages
1.High efficiency,high level of automation,longer persistence.
2.Strong construction,higher security.
3.Wide collection range,good economic performance,lower operating cost.
4.High navigation speed,good stability.
5.Spare parts are available. Completely tested before delivery.
6.The cleaning vessel can be made according to customers' request.

Product Parameters

Model	RL-AWH700	RL-AWH900	RL-AWH1300	RL-AWH1600	RL-AWH2100
Overal size(LxWxH)m	7.3*2.4*2.7	9.5*3.6*2.8	13.5*4*2.8	16*4.5*4.2	21*6*5.3
Hull size(LxWxH)m	4.3*1.9*0.9	6*2.8*1	8*3*1	9*3*1	11.6*1.8*1.5
Draft empty(m)	0.2/0.55	0.3/0.6	0.3/0.7	0.3/0.7	0.5/1.1
Weight(kg)	1590	5000	8080	9500	20200
Sailing/working speed(km/hr)	6-8/ 2-3				10/3
Hull Material and structre	Carbon steel/ stainless steel/aluminum(optional)		Carbon.steel/stainless steel/aluminum(optional) Split Barge
Cutting W/D(m)	1.5/1.2	2/1.5	2.5/1.5	2.5 /1.5	3.0/1.8
Main engine manufactuer	Weichai(Cummins optional)	Weichai(Cummins optional)	Weichai(Cummins optional)	Weichai(Cummins optional)	Weichai(Cummins optional)
Engine Power&RPM	25KW	35KW	75KW	90KW@1500RPM	179KW

Detailed Photos

WORK AREAS:
BEFORE AND AFTER:
PRODCUTIVE PROCESS:
All Products:
Company Profile
Our factory was established in 1993, which is a high technology enterprise devoting to the investing, consulting, designing, manufacturing, installation and operation management of environment protection engineering machinery with 30years experience.

Certifications
LOADING:
FAQ
1.How often should we harvest weeds in our lake?
For optimal weed control, 2 Harvestings a year approximately 6 weeks apart.
2.When should I have my lake cut for best results?
When water temperature is around 70 Degrees and 2nd cutting in 6 weeks. Shallow lakes will be earlier then deeper lakes.
3.How does harvesting affect fishing?
Fishermen on the lakes tell us that fishing improves in areas that we have harvested.
4.When is the best time schedule lakes for cuttings?
Due to the large demand, in general for harvesting service, is best to have a contractor booked by October 31st for the coming year.

After Sales Service
1. Instruction and installment service
2. Support the spare parts service
3. Maintenance service after 12 months
4. Calling and email to customers for feedback
5. Answer the questions and solve the complaint from customers

---
