Product Details
Product Description
Product Description

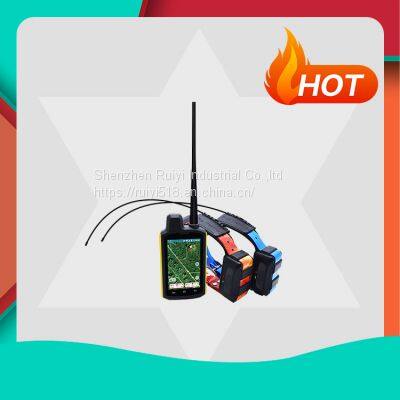

Ruiyi GPS Hound Tracker is an intelligent electronic product specially designed for hunting enthusiasts. Through GPS/BDS, WiFi, base station multiple positioning, it is easy to use Google Maps, and it can receive positioning normally through VHF wireless technology in deep mountains without internet. Signal to realize the interaction between human and hound
Product Name: GPS Hound Tracker / GPS dog collar
Product model: RYC-01
Features:
1. The GPS positioning collar is used in conjunction with the handheld.
2. GPS/BDS positioning system for precise positioning.
3. VHF wireless technology, normally send the position information of this collar to the handheld without network.
4. Support network communication, upload location information to the server regularly in the networked state for viewing by the handheld, and the use of VHF wireless technology can ensure that this collar is not lost.
5. The high-definition map of the handheld device displays the location of the collar in real time.
6. The map supports offline maps, and the handheld device can normally use the map to view the location of this collar without the network.
7. Dog training safety (electrical shock stimulation, vibration stimulation).
8. Long standby time.
9. Fast charging.
10. IP68 waterproof and dustproof.
Technical Parameters:
GSM/GPRS module: MTK
GPS module: UBLOX
VHF wireless module: 155-169 MHz
Electrical stimulation module: multi-mode optional
GPRS frequency: 850/900/1800/1900Mhz(4Band)
Working current/voltage: GPRS<90mA/3.8V VHF<1200mAH
GPS antenna: built-in (external to VHF antenna)
Positioning accuracy: 1-10 meters
GPS cold start positioning time: 36S
GPS hot start: 1S
Standby current: <60mAH
GPS sensitivity: tracking: -162dBm capture: -160dBm
Battery: 7000mAH
Working temperature: -20℃~60℃
Storage temperature: -35℃~70℃
IP rating: IP68
Size: Length 85MM*Width 45MM*Thickness 50MM
SIM card: Micro SIM card
Battery working time: 28 hours in full-speed positioning mode, 42 hours in interval positioning mode, 120 hours in standby mode
Data sending and receiving: GPRS/VHF wireless transmission module GPS data storage: cloud server background/computer storage
Interface: USB (magnetic type)
Built-in storage: 32M
Working charging voltage: 5V DC
Battery type: 18650 lithium battery*2
Button: TPU button
Charger type: 1A current fast charge type
Sensor type: G-SENSOR
>>
