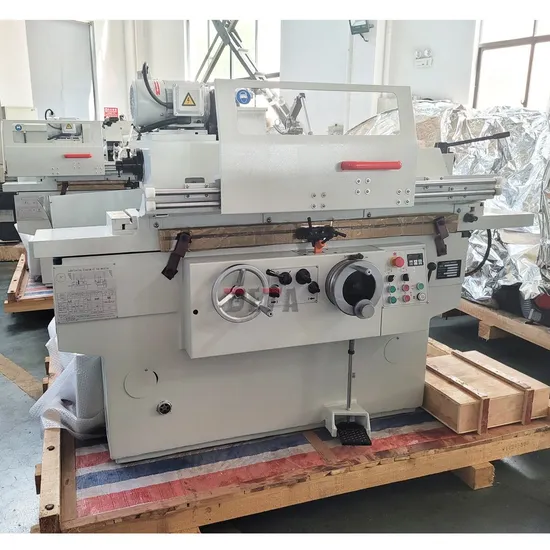

M1420 CE Certificate External Internal Cylindrical Grinder for Metal

US$17,000.00
1-4 Sets
US$14,000.00
5+ Sets

Basic Info.

Model NO.
M1420
Type
External Grinding Machine
Processing Object
Metal
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Precision Universal Cylindrical Grinding Machine
Model
M1420X500
Grinding Diameter
8-200mm
Grinding Type
Cylindrical Grinding Machine
Grinding Length
500mm
Delivery Time
2 Month
Warranty Time
12 Months
Voltage
380V
Max.Workpiece Weight
50 Kgs
Function
External and Internal Cylindrical Grinder
Center Height
135mm
Internal Grinding Diameters
13-100mm
Headstock Spindle Rotation Speed
Stepless Speed 25-380 R/Min
Internal Wheel Spindle Rotating-Speed
10000rpm
Color
OEM
Transport Package
Wooden Case
Trademark
BETA
Origin
Shandong, China
HS Code
8460291100
Production Capacity
100 Sets Per Month

Packaging & Delivery

Package Size
300.00cm * 200.00cm * 200.00cm
Package Gross Weight
2500.000kg

Product Description

M1420 CE Certificate Unicersal External Internal Cylindrical Grinding Machine
Description unit M1420x500 M1420x800
External grinding diameters mm φ8~200 φ8~200
Internal grinding diameters mm φ13~100 φ13~100
Center height mm 135 135
Headstock spindle rotation speed r/min 50HZ:25~380stepless
Max. worktable traverse mm 650 950
Hydraulic travel speed m/min 0.1~4 0.1~4
Max.workpiece weight kg 50 50
Grinding length External/Internal mm 500/125 800/125
Swivel range of worktable ° -5~+9° -3~+7°
Max.wheel peripheral speed m/s 38 38
External wheel size mm Max.φ400x50xφ203 Minφ280x50xφ203
Internal wheel spindle rotating-speed r/min 10000 10000
Headstock and tailstock center morse NO.4 NO.4
Total motor power kw 5.625 5.625
Machine overall dimension(LxWxH) mm 2200x1600x1700 3100x1600x1700
Machine weight kg 2500 3000
Working Accuracy
Roundness(O.D/I.D) 1.5/2.5μm(O.D/I.D)
Uniformity of dia.in longitudinal section(O.D/I.D) 5/8μm(O.D/I.D)
Surface roughness(O.D/I.D) Ra0.32/0.63μm(O.D/I.D)

Features: 1.Table can be tilted for conical grinding operations and scale allows adjustment to desired position
2.Spindle stock can be swiveled 180° for inside grinding operations
3.Main spindle is mounted hydro-dynamically - oil film prevents contact between spindle and bearing
4.Longitudinal table guide and grinding spindle stock cross guide feature V- and flat guiding each
5.Strong reinforcements and generously designed walls make the machine base resistant to temperature fluctuations and deformations
6.Oil film between spindle and bearing reduces the vibrations to a minimum to achieve top results and high accuracy
7.Stepless feed adjustment with selective programmable stop at end of each table movement
8.Precisely adjusted spindle head and solid grinding spindle stock to achieve top processing results at various grinding operations
