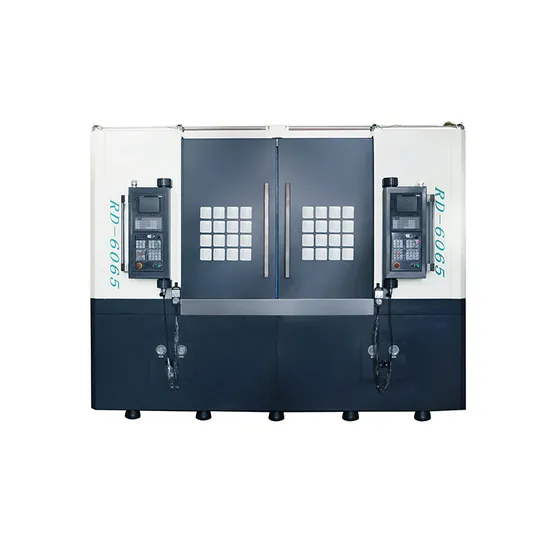

Rd-Vl6065s with CNC System Single Spindle Heavy Duty Vertical CNC Lathe Machine

US$20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
RD-VL6065S
Type
Vertical Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Condition
New
Max. Swing Diameter
650
Max. Turning Diameter
600
Max. Turning Height
600
Spindle Speed
50-2000
Max. Spindle Torque
600
Transport Package
Wooden Case
Origin
China
Production Capacity
100

Product Description

ITEM UNIT RD-VL6065 RD-VL6065S SINGLE SPINDLE RD-VL6065S DOUBLE SPINDLE
Max. swing diameter mm 650 650 650
Max. turning diameter mm 600 600 600
Max. turning height mm 650 600 600
Spindle nose A2-8 A2-8 A2-8
Spindle speed r/min 50~2000 50~2000 50~2000
Chuck diameter in 12 12 12
Max. spindle torque N.m 600 600 600
Max. loading capacity kg 800 800 800
Spindle motor power kw 22 22 22
CNC system FANUC/SIEMENS/KND/GSK FANUC/SIEMENS/KND/GSK FANUC/SIEMENS/KND/GSK
2 axis guide rail SRG45LR Extended slider 45 roller guide 45 roller guide
2 axis lead screw DIK4210 4210 4210
X/Z axis motor power kw 2.8/3.6 2.8/3.6 2.8/3.6
X/Z axis fast move speed m/min 20 20 20
X axis travel mm -30~+650 -30~+650 -30~+650
Z axis travel mm 600 600 600
X/Z axis positioning accuracy mm ±0.005 ±0.005 ±0.005
X/Z axis repeated positioning accuracy mm ±0.003 ±0.003 ±0.003
Turret tool number 10/12 10/12 10/12
Tool size O.D tool/Boring tool mm 25x25/40 25x25/40 25x25/40
Hydraulic control range MPa 0.1-6 0.1-6 0.1-6
Machining precision IT6~IT7 IT6~IT7 IT6~IT7
Surface roughness Ra1.6 Ra1.6 Ra1.6
Stampings pump head/flow 34m/4m³/h 34m/4m³/h 34m/4m³/h
Cooling pump head/flow 28m/4m³/h 28m/4m³/h 28m/4m³/h
Chip conveyor Chain chip removal Chain chip removal Chain chip removal
Working voltage Hz 380V±10% 50Hz 380V±10% 50Hz 380V±10% 50Hz
Machine electrical capacity kVA 35 35kVA*2 35kVA*2
Dimension mm 1700x2800x3000 3300x2800x3000 3300x2800x3000
Machine tool protection Full protection Full protection Full protection
Weight kg 7500 12000 12000
