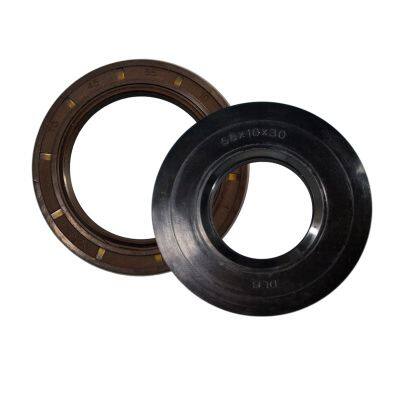

Oil seals are essential components in machinery, playing a crucial role in preventing fluid leaks and maintaining the efficiency of various mechanical systems. However, understanding the markings on these seals—comprising numbers, letters, and letter combinations—can be a challenge for those unfamiliar with the terminology. These markings are not random; they carry significant information about the seal's specifications, material, and intended application. This article explores what these markings represent from multiple perspectives.
1. Size and Dimensions
The most straightforward information conveyed by the numbers on an oil seal relates to its size. Typically, these numbers indicate the seal’s dimensions, including the inner diameter (ID), outer diameter (OD), and width. For example, a seal marked with "25x47x7" refers to an inner diameter of 25mm, an outer diameter of 47mm, and a width of 7mm. These measurements are crucial for ensuring that the seal fits precisely in the intended application, preventing leaks and ensuring proper functioning.
2. Material Identification
Letters on oil seals often denote the material from which the seal is made. Common materials include NBR (Nitrile Butadiene Rubber), FKM (Fluororubber), and PTFE (Polytetrafluoroethylene). These materials are chosen based on their resistance to heat, chemicals, and wear. For instance, a seal marked with "NBR" is made from Nitrile, which is known for its resistance to oils and hydraulic fluids, making it suitable for automotive and industrial applications.
3. Seal Type and Design
Letter combinations often provide insight into the seal’s type or design features. For example, "TC" refers to a seal with a double lip (the main sealing lip and a dust lip), often used in environments where contamination is a concern. Another example is "SC," which refers to a single-lip design. These designations help users quickly identify the seal that meets the specific requirements of their application, such as enhanced sealing in dusty environments or high-pressure conditions.
4. Operational Parameters
In some cases, the markings on oil seals may also include information about the seal's operational limits, such as its maximum rotational speed or pressure rating. This is especially important in high-performance applications, where exceeding these parameters could lead to premature seal failure and potential damage to the machinery.
The numbers, letters, and letter combinations on oil seals form a code that, once understood, can significantly simplify the process of selecting the right seal for a particular application. However, beyond the technical specifications, these markings also serve as a reminder of the importance of precision and the need to match the seal with its intended environment. As technology advances, it’s possible that new codes and combinations will emerge, offering even more detailed insights into the capabilities of oil seals. Understanding these markings not only aids in proper seal selection but also enhances the reliability and longevity of the machinery in which they are used.
>>
