High Quality Wear-Resistant and Corrosion-Resistant PFA Tube

Product Description

Product Description

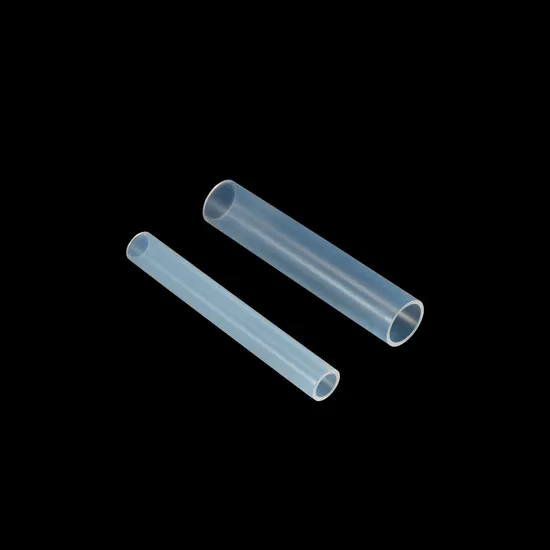

PFA transparent tube is extruded from polytetrafluoroethylene. It has high transparency to observe the internal fluid transport situation, good mechanical strength, and toughness, mainly used in chemical fluid transport devices, medical industry, water treatment, heat exchangers, the semiconductor industry and other aspects. Fluorway PFA tubes, rods, and fittings are manufactured using imported PFA resin, offering excellent chemical resistance, high-temperature resistance, resistance to cracking, and good transparency. Compared to other fluoropolymer tubes, PFA has higher polymer purity and a higher continuous operating temperature. All fluoroplastic products can be customized to specific dimensions.

Comparison of temperature and pressure values of PFA tubes
species	dimension	Outside diameter * Inside diameter(mm)	thickness (mm)	Withstand pressure at different temperatures(MPa)
				25ºC	45ºC	65ºC	85ºC	120ºC	150ºC	200ºC
millimeter	3	3*2	0.5	5.0	4.6	4.0	3.1	2.3	1.8	1.1
	4	4*3		4.0	3.5	3.5	2.4	1.8	1.4	0.8
	6	6*4	1.0	6.0	5.0	5.0	3.7	2.5	2.0	1.2
	8	8*6		4.5	4.1	4.1	2.7	1.9	1.5	0.9
	10	10*8		3.5	2.9	2.9	1.9	1.5	1.2	0.8
	12	12*10		2.9	2.4	2.4	1.7	1.3	1.0	0.6
	19	19*15.8	1.6	3.0	2.5	2.5	1.8	1.2	0.9	1.6
	25	25*22	1.5	2.3	1.9	1.9	1.4	1.1	0.8	0.5
inches	W1	3.18*2.18	0.5	5.0	4.3	4.3	2.9	2.4	1.9	1.1
	W2	6.35*3.95	1.2	7.5	6.0	6.0	4.0	3.1	2.4	1.5
	W2Y	6.35*4.35	1.0	5.8	5.0	5.0	3.5	2.3	2.0	1.4
	W3	9.53*6.33	1.6	6.9	5.4	5.4	3.6	2.8	2.2	1.4
	W3Y	9.53*7.53	1.0	3.7	2.9	2.9	2.0	1.3	1.2	0.8
	W4	12.7*9.5	1.6	5.2	4.0	4.0	2.7	2.1	1.7	1.1
	W6	19*15.8		3.0	2.5	2.5	1.8	1.2	0.9	0.6
	W8	25.4*22.2		2.3	2.0	2.0	1.5	1.1	0.8	0.5
	W10	31.8*28	1.9	2.0	1.7	1.7	1.3	0.9	0.7	0.5
	W12	38.1*33.7	2.2	2.0	1.6	1.6	1.3	0.9	0.7	0.5

Note 1): The above values are actual test data, not the standard specification data of the product. Note 2): When using, please use at a pressure of less than 1/3 to 1/5 of the above value.

High and low temperature resistance: -196--260ºC Weather resistance: can be exposed to ozone, sunlight for a long time Incombustible: it will not burn in the air (oxygen index > 95VOL.%) Non-toxic: has physiological inertia Easy secondary processing: self-sealing, self-welding, flanging, coil tube can be made Excellent chemical resistance: corrosion resistance to all chemicals, very suitable for pure water, fuel, oil, high-purity chemical transportation; Excellent stress resistance force cracking and flexing life Ultra-pure: very low metal ion content without precipitation Strong mechanical strength and burst pressure at higher temperatures

Support Customization

The product is non-standard customization, if necessary, please send the specifications to customer service. Strong and durable: tensile resistance, wear resistance, low temperature resistance, high corrosion stability.

Exquisite workmanship: All products are strictly tested and selected materials are durable and stable in performance.

Strong and durable: tensile resistance, wear resistance, low temperature resistance, high corrosion stability.

Strict material selection: low friction coefficient, good self-lubrication, high strength wear-resistant material.

Application Areas

Applicable to: medical, semiconductor, heavy chemical industry, automobile, new energy, electronic communication.

Raw material data

PFA (polytetrafluoroethylene - perfluoroalkane copolymer) is a kind of high performance plastic material. It has excellent heat, corrosion and chemical resistance and can work in extreme environments for a long time. The tensile strength and tensile strength of PFA are very high, and the transparency is excellent, and will not affect the processed product. PFA is formed by copolymerization of polymer and fluoride. The manufacturing process of the material is complex and requires high temperature and pressure environments. In the production process, polytetrafluoroethylene and perfluoro will be heated together to form a polymer polymer. This polymer has very good physical and chemical properties, so that PFA materials have excellent performance.

Packaging & Shipping

1. Each roll is 100m, each box is filled with several rolls according to the specifications, and each box is attached with a certificate of conformity.

2. Store in a clean, dry, cool and light-proof environment to avoid impurities.

3. Non-toxic, non-flammable, non-explosive, non-corrosive, transported as non-dangerous goods.

Company Profile

Fluorway Polymer Materials (Shanghai) Co., Ltd., located in Shanghai, China, is an enterprise situated within the national G60 Science and Technology Innovation Park. We specialize in the production and domestic and international sales of high-performance fluoroplastic semi-finished materials and precision processed components. our business principle is: High quality, wonderful service and very competitive price. We always place quality to the highest level and get repeated orders from our client all the time. We have a well-organized quality control system and a professional QC team Depending on strong technical power, advanced equipment and production lines, great reserve of auxiliary equipment and scientific management, all our products are good quality ensured. As we constantly keep improving, customers from all around the world think highly of us because of our unique workmanship, fine quality. We sincerely welcome Emails and calls from home and abroad as well as those who have been supporting and helping us for long.We believe our strength and sincerity will help us become your faithful business partner. We would like to provide you with the convenience of purchasing and visiting. We are looking forward to growing up with all our partners and building up a long-lasting and prospect future. We sincerely welcome customers and friends, new and regular, from all over the world to enter into business cooperation with us.

FAQ
Frequently Asked Questions
1. Q: How long does the sample take? Is the sample free?
A: Usually 2-5 working days: For our stock products, it is free of charge, but shipping fee is charged. Samples are made according to your requirements, but the sample fee is refundable for bulk orders.
2.Q: How to confirm the customized products?
A: We can customize different sizes according to your requirements, firstly make samples and provide them to you.
3,Q:What is your minimum order quantity?
A: Usually our minimum order quantity is 1000 meters per piece, but if you need different sizes of products with different specifications, our minimum order quantity can be 100 meters per order, with no less than ten pieces of each style and each specification.
4, Q: How to know the price?
A: Price is the most important concern of every customer. If you want to know the price, you need to know the following details: product specifications, size, thickness, diameter, outside diameter, inside diameter, etc. These are the main factors that determine the price. The more you order, the lower the unit price you will get!
5. Q: What is your packaging?
Packing: The products are packed in cartons, there is one tube in a carton, we can do any other packing according to your requirements.
6. Q: What is your delivery time? Where is the shipping port?
A: Our delivery time is usually one month in peak season, 15 working days in low season, and the shipping port is Shanghai.
7. Q: What are your payment terms?
A: For orders less than 3000 dollars, full payment.
If the order is more than 3000 dollars, 50% prepayment and 50% before shipment.
8.Q: After-sales service?
A: We promise that if there is any quality problem different from the description of mass production, we will take the responsibility of the defective goods.
Q:Could you tell me something about your company
A:Fluorway Polymer Materials (Shanghai) Co., Ltd., located in Shanghai, China, is an enterprise situated within the national G60 Science and Technology Innovation Park. We specialize in the production and domestic and international sales of high-performance fluoroplastic semi-finished materials and precision processed components.Additionally, we provide MSDS reports to ensure the safe use of our products and help buyers mitigate any potential chemical incidents during usage and transportation. With over 20 years of experience in this industry, our company boasts a strong team of technical engineers and sales professionals.

---
