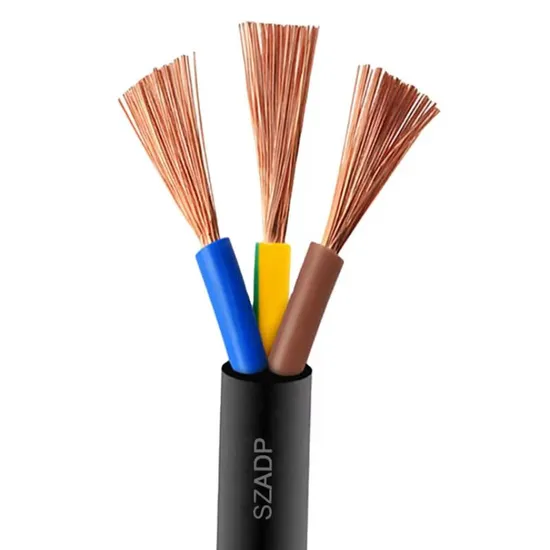

H05VV-F 300/500V 2X0.75 3X1.5 3X2.5 4X1.5 4X2.5 4X4 Multi-Core 2/3/4/5cores Copper Flexible Wire PVC Sheathed Cable

Product Description

Product Description
Copper conductors are used for most installations due to its high conductivity, anti-corrosive properties, and its flexibility for use in-air, in-earth and in-concrete.
Furse PVC insulated stranded copper cable is available in a range of sizes to meet differing current ratings (see product information table).

BV-105 model not more than 105ºC, others not more than 75ºC, installation temperature not lower than 0ºC.
APPLICATION: This product is fit for ac rated voltage 450/750V.

Disclaimer:
* Parameters mentioned in the document are indicative and can vary subject to different standards
* Customizations are available on select products. Please indicate your interest by reaching out to the sales team

Number of cores x standard cross-section mm	Specifications	Insulation thickness specified value mm	The specified thickness of the sheath is mm	At 20 ºC, the conductor resistance Ω/km shall not exceed
				Copper core	Galvanized copper core
2×0.5	16/0.20	0.5	0.6	39.0	40.1
2X0.75	24/0.20	0.6	0.8	26.0	26.7
2X1	32/0.20	0.6	0.8	19.5	20.0
2X1.5	30/0.25	0.7	0.8	13.3	13.7
2X2.5	49/0.25	0.8	1.0	7.98	8.21
3×0.5	16/0.20	0.6	0.6	39.0	40.1
3X0.75	24/0.20	0.6	0.8	26.0	26.7
3X1	32/0.20	0.6	0.8	19.5	20.0
3X1.5	30/0.25	0.7	0.9	13.3	13.7
3X2.5	49/0.25	0.8	1.1	7.98	8.21
4X0.75	24/0.20	0.6	0.8	26.0	26.7
4X1	32/0.20	0.6	0.9	19.5	20.0
4X1.5	30/0.25	0.7	1.0	13.3	13.7
4X2.5	49/0.25	0.8	1.1	7.98	8.21
5X0.75	24/0.20	0.6	0.9	26.0	26.7
5X1	32/0.20	0.6	0.9	19.5	20.0
5X1.5	30/0.25	0.7	1.1	13.3	13.7
5X2.5	49/0.25	0.8	1.2	7.98	8.21

Detailed Photos
Our Advantages
product catalog
FAQ
1. How does your factory control the quality?Factory has a quick and enthusiastic merchandisers team, strict and responsible QC team, service for many well-known brands all around the world with our high-quality products and strict.2. Can you give me a discount?Our policy is that the bigger the quantity, the cheaper the price, so we will quote you the best price based on your order quantity. If you have any query about the prices, contact us would see to your price issue specially.3. How to place an order?Select item, tell us quantity-confirm details -we quote price -give us shipping address-make proforma invoice for you-make payment.4. Is there cheap shipping cost to import to our country? For small order, express will be best. And for bulk order, sea ship way is best but takes much time; For urgent orders, we suggest via air to airport plus our ship partner send to your door. When we calculate the freight for you, we will choose the cheapest, safest express company. It is the freight company that asks us to pay, so we cannot make it cheaper. If you have your own agent in China, we can send the package to your agent.5. May I visit your factory?Sure, welcome any time. We can also pick you up at the airport and station.Delivery Detail: 48 hours for small orders, large orders depend on quantity.
For more information about wires and cables, please feel free to contact us. Your inquiries will be replied to within 24 hours!!!

---
