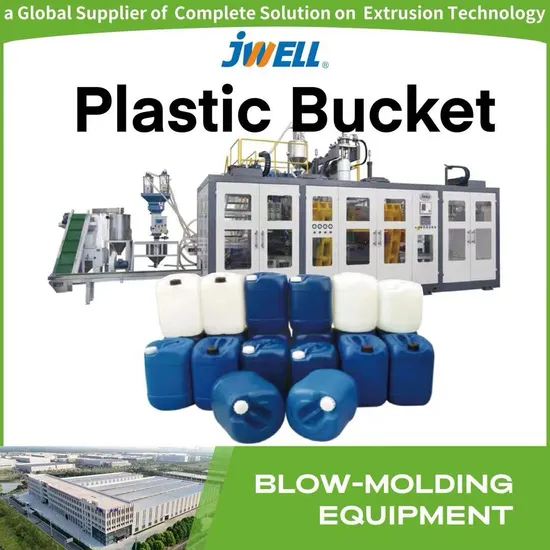

Jwell Small Automatic Blow Molding Machine for Plastic Buckets 15-30L Chemical Packaging Plastic Jerrycans and Bottles

Product Description

Product Parameters

Model	Unit	BM30DN-C
Max product volume	L	30
Dry cycle	Pc/h	450*2
Die head structure	type	Continuous type
Main screw diameter	mm	100
Max plasticizing capacity(PE)	kg/h	190
Driving motor	KW	55
Oil pump motor power(Servo)	KW	22
Clamping force	KN	300
Space between platen	mm	380-860
Platen size W*H	mm	580*600
Heating power of die head	KW	20
Machine dimension L*W*H	m	5.6*4.8*4.5
Machine weight	T	18
Total power	Kw	125

Detailed Photos

Product Description
Product Description:
The JWZ-BM30DN-C Blow Molding Machine is a highly efficient and versatile solution designed to manufacture 15-30L chemical packaging plastic jerrycans and bottles. Its advanced features ensure optimal production efficiency, reduced material waste, and superior product quality.
Key Features:
Versatile Applications: Perfect for producing a range of 15-30L chemical packaging plastic jerrycans and bottles, widely used for storing industrial chemicals, oils, and liquids. Continuous Die Head with Up-Blowing Structure: Enhances production consistency and ensures smooth operation for higher productivity. Integrated Automation: Features auto-deflashing, on-line scrap conveying, leak testing, and product packing, significantly reducing labor costs while improving efficiency. Toggle-Type Platen Structure: Provides uniform clamping, higher clamping force, and easier mold installation and removal, ensuring better mold adaptability for various product sizes. Optional Multi-Layer Co-Extrusion: Produces multi-layered jerrycans and bottles with enhanced barrier properties for specific packaging needs. Optional View Strip Line System: Allows for visible content level indicators in jerrycans and bottles. Optional Hydraulic Servo Control System: Ensures precise operation, reduced energy consumption, and improved system stability. Applications:
Chemical packaging jerrycans for industrial liquids and hazardous materials Plastic bottles for oils, lubricants, and cleaning agents Agricultural product containers for fertilizers and pesticides Industrial transport packaging This advanced blow molding machine from JWELL is the ideal choice for manufacturers looking to produce chemical packaging jerrycans and bottles with consistent quality, high efficiency, and cost-effectiveness.
