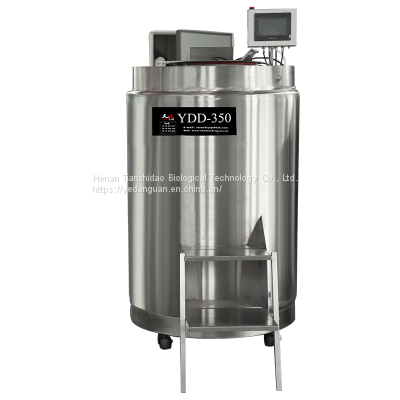

Stem cell liquid nitrogen tank_350L sample freezing tank

Product Details

Product Description

Product Description
Features:
1. Compatible with both liquid phase and vapor phase storage methods;
2. Double-layer vacuum insulation design;
3. Capacity ≥ 350L, can accommodate 2ml cryopreservation tubes ≥ 13,000;
4. Large-capacity liquid nitrogen design at the bottom of the tray, the temperature difference in the entire storage area is ≤10°C during vapor phase storage;
5. Remote monitoring and communication functions, call or send text messages to the designated mobile phone when alarming;
6. Intelligent local and cloud data backup and export;
7. Configure a hot gas bypass to transfer the heated nitrogen out of the tank to ensure that only ultra-low temperature liquid nitrogen is injected into the tank, ensuring sample safety and reducing additional liquid nitrogen consumption;
8. Rotatable sector design, liquid nitrogen storage intelligent monitoring and management system
9. Multiple humanized designs
Product parameters:
Amount of liquid nitrogen at the bottom of the tray (L): 55
Effective volume in the tank (L): 350
Tank diameter (mm): 326
Internal effective height (mm): 600
Tank outer diameter (mm): 875
Total height of tank including instrument height (mm): 1481
Tank empty weight (kg): 219
Tank operating height (mm): 1263
Full load total weight (kg): 502
Door width requirement ≥ mm: 895
Storage capacity:
1.2&1.8&2ml cryovials: 13000
Number of 5x5 freezing racks: 4
Number of 10x10 freezing racks: 12
5x5 box quantity: 40
10x10 box quantity: 120
Number of freezing rack levels: 10
Tianchi KGSQ has more than ten years of low-temperature manufacturing experience. Our products are widely used in animal husbandry, scientific research institutions and university sales. If you want to become our dealer, please contact us.
