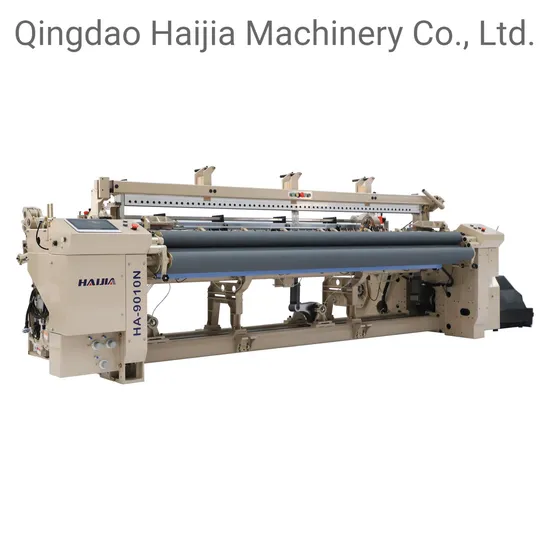

Four Colors High Speed Energy Saving Water Jet Weaving Textile Loom with Cam Shedding. (HAN-230)

Product Description

Fabric Style Show
Excellent performance 10% higher work efficiency with 10% lower consumption.
1. Wide range and high density(75D example)
Weft yarn range from 10D-1800D,weft yarn range from 10D-300D, and yarn denisty can achieve 197 pick/inch.
2. High speed
Design speed is 1200rpm;Dobby shedding( 16 pcs frame):600-650rpm;
3. Low maitenance cost
Much more convenient maintenance operation, durable oil and filters to make longer maitenance period, 50% less expense
Cam Shedding Specifications

HAN-230
No.	NAME	Type and performance specifications
1	Wall board	We adopts HAN special heavy enhanced, according to TSUDAKOMA Drawing,HT220-230 standard material, large CNC precision machining
2	Gear in the large box	AdoptingTaiWan(TTG)gear,ultra-quite,wear-resistant,low vibration and high precision
3	Bearing in the large box	Bearing in the large box is swedish SKF, Bearing out of the large box made in Japan.
4	Beating up shaft	Adopt special treatment of solid beating up shaft, centralized oil lubrication in the support sleeve, add in weft counter weightbalancesystem(Haijiapatent:201220718493.9), optimization of beating up angle, the beating up more powerful and stable, cloth smooth.
5	Slay	SUS304 stainless steel reinforced and polishing processing slay at the top brand in China, achieve cloth smooth.
6	Stripe	Tianqi stripe, For 102 double stick, strengthening take-up.
7	Plastic stocks	New type and high quality plastic stocks
8	Beam	A number of optimization design on the basis of TSUDAKOMA ZW-410, the beam before and after the five angle pipe, steel material supply, before and after the beam with thickened angle.Especially before the beam on Haijia, unique design, draws on the advantages of air jet loom beam, making solid beating up shaft is more stable.
9	Electronic clip yarn	Electronic clip yarn
10	Suction pipe	∮76mm,thickness 6mm,sus304 stainless steel.
11	Cross beam	Heavy and lengthen treatment
12	Tension spring	∮12mm
13	Panel	HAN Special type
14	Let-off and take-up device	Domestic electronic let-off and take-up
15	Temple bar,guide	HAN-230 Special type ,3mm stainless steel
16	Temple	Five ring three rows of fine needle puncture (0.3mm) under the pressure of Temple (made fine denier fabric cloth smooth) South Korea Renhe or Jilong brand.
17	Leno parts	Taiwan production assembly (slide seat:Stainless steel, low noise ear wire assembly, running smoothly, long service life)..
18	Press roll	New press fabric service,press roll 40#,equal tension take-up
19	Main motor	The Haijia special power of 3.0KW red flag.Save electricity,start fast,low noise,little park,long life and other advantages(self-purchased Japan NACHI bearing)
20	Electronic control system	Nanjing BAINA Brand..(electronic control,electronic let-off and take up,feeder triad control ,with 7 inch electronic display)
21	Measuring	Adopting double jet Electronic length measuring .Adopting double Electronic measuring
22	Light detection weft	Light detection weft, plus plug signal amplifier.
23	Code	Electronic
26	Nozzle	Korea MDH
27	One way valve	Japan AWA valve
28	Oil seal	Made in Taiwan
29	Cutter parts	Taiwan bearing,scissors,scissors spring,improve efficiency.
30	Stabilized tank	Double filter,bucket type.
31	Take heald level	American DuPont material production, wear, long service life.
32	heald frame	Haijia designed high quality strengthend frame Customer can match by themselves.
33	Painting	TSUDAKOMA yellow color, two times over the primer, topcoat, special paint production line, improve the anti rust effect.
34	The whole machine of Stainless steel screw	Taiwan dongming SUS304 stainless steel screw,not rust
35	Stainless steel screw	Jin Yi brand in Taiwan
36	Waterproof device	Thickened waterproof curtain, TSUDAKOMA style transparent waterproof cover plate.
37	False twist spindle	Pull type
38	Weft stand	Double nozzle standard weft stand.
39	Oil supply	Centralized oil supply including beating up shaft and shedding parts
40	Swing degree	null
41	Casting	Identify quality supplier, according to the standard drawings, guarantee the material and weight..

Air Jet Loom with Cam Shedding Details Show
The Workshop in Our Factory Introduction
Advanced Manufacturing Workshop
The company is equipped with advanced CNC equipment, high-precision imported processing center, and adopts information management methods to achieve independent precision machining of precision parts of key parts of the loom. The processing accuracy of key parts and components reaches 0.01mm,greatly improving the whole machine Stability and startup efficiency.
Three Dimensions Warehouse
The company is equipped with an automated three-dimensional warehouse, which uses computers to accurately manage the goods information, reducing possible errors in the process of storing goods and improving work efficiency. At the same time, the three-dimensional automated warehouse realizes motorization in the transportation of goods in and out of the warehouse, which is safe and reliable in handling goods, and reduces the damage rate of goods in the process of handling.
Quality Detection Workshop
The company adopts advanced calibration and testing equipment to ensure the qualified rate of products produced in each process and strictly control the quality fluctuation, so as to ensure the product quality of the whole machine. Improve the production process through inspection, reduce the quality cost and enhance the comprehensive competitiveness of products.
Advanced Spraying Workshop
Our spraying workshop adopts the same electrophoretic spraying technology as Tsudakoma, and is equipped with product automatic spraying production line and spraying robot independently developed by the company. The use of the new equipment can make the workpiece surface evenly and completely covered with a protective paint film, so as to ensure that there will be no incomplete paint film coverage and uneven paint film thickness. At the same time, the application of electrophoretic spraying technology significantly improves the anti rust and anti-corrosion ability of the workpiece. The service life of the loom is greatly improved.
Advanced Assembly Workshop
On the basis of the whole machine assembly line, the company introduced Siemens to intelligentize the loom assembly, and realized the "mobile people do not move" production mode, that is, the pulsating production mode. Through strict quality management, fine differentiation of assembly process flow, fastening connectors with special tools with fixed torque, and strict inspection of production facilities, the quality of the overall loom is improved.
Packing Details
Certification of HAIJIA Equipment
HAIJIA On Exhibition
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE,ISO
3: What about the delivery time?
A: 30-45 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment.
5. What about the Minimum Order Quantity?
A: The MOQ is 6 pcs
