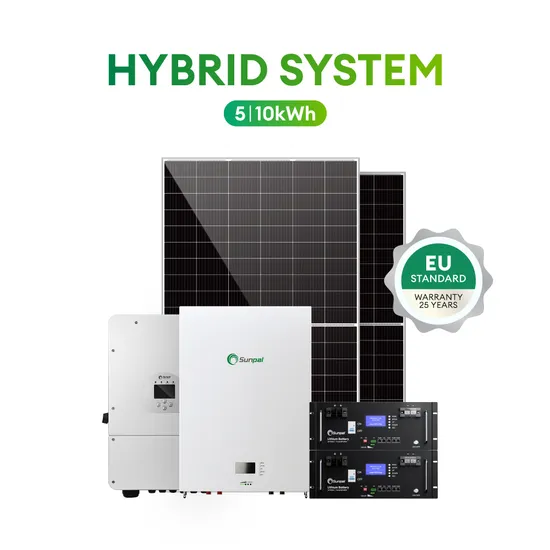

Sunpal Full Solar Kit for Home 5000 6000 Watts 10kw Hybrid Solar Power Systems

Product Description

Product Description
Solar Panels:Convert the solar energy into DC electricity
Deep cycle Batteries: Stores solar electricity Lithium Ion Battery:Solar energy storage,such as:powerwall,stackable battery
Hybrid/Off grid lnverter:Convert DC elecricity into AC electricity,same quality as the utity elecricity and regulates the AC charge to the batteries from the utlity or generator source

System MODEL	SP5KW-HY	SP8KW-HY	SP10KW-HY	SP12KW-HY
PV System Size Nominal (kWp)	5.5	8.8	11	13.2
PV MODULE SPECIFICATIONS (*half cell mono)
Power (W)	550
Vmp (V)	41.96
Dimensions (L x W x H) (mm)	2279*1134x35
Certififications	CE / TUV (IEC 61215 & IEC 61730)
INVERTER SPECIFICATIONS
Inverter Size (kW)	5	8	10	12
Max DC Power (W)	6500	10400	13000	15600
Max DC Voltage (V)	500		1000
MPPT Voltage Range(V)	150-425	125-425	200-650	200-650
Output Voltage	220,230Vac		220/380,230/400Vac
UPS (Off Grid Model with Battery)
Rated Power (VA)	5000	8000	10000	12000
Max DC Charge/Discharge Current(A)	120	190	210	240
Max Power(W)for 10 Seconds	7500	12000	15000	18000
BATTERY BANK SPECIFICATIONS
Battery Type	Li-Ion(LifePO4)
Total Batteries	1	2	3	4
Battery Bank Power(kWh)	4.8	9.6	14.4	19.2
Battery Voltage (V)	48
Battery Current(Ah)	100
Number of PV Modules	10	16	20	24

System Component
Sunpal Project Case
Company ProfileCompany OverviewAs a world-class solar products manufacturer, Sunpal specializes in the research, development, production, and sales of solar PV products and solar panels. Sunpal focused on research and manufacture of all-black solar panels since the year 1998, we have exported our various kinds of full-black solar panels to 86 countries and won a good reputation in quality. With over 10 years of development, Sunpal now has factory area covering 150,000 square meters, with 600 experienced employees.Certifications
Sunpal Solar Panel Production Line
Sunpal lithium Battery Production LineWhy Choose Us
Professional Software Design With 24h Service Wooden Case Packing For Safety ShippingOur Client And Good ReviewsHow To Get Your System
Get Free Quote Now
FAQA: What are your main products?We have many series of solar products, mainly producing solar systems, solar panels, solar inverters, powerwall, solar lithium ion batteries and solar mounting systems, and all related solar accessories.
B: Are you manufacturer?
Yes,we have our own factory team and sales team,We provide you one-stop service.
We are a factory with more than six years of experience in producing solar energy series products. You are welcome to visit our factory.
C: Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive support, and after-sales services.
D: How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
E: What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment such as Japan and Germany. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
F: How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately

---
