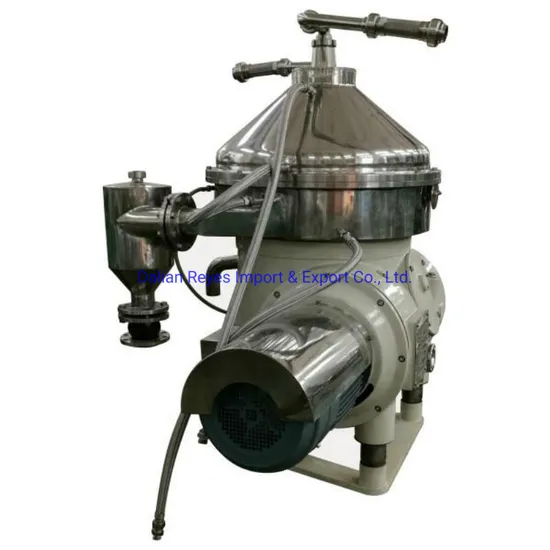

Disc Type Industrial Oil Water Separator / Industrial Continuous Centrifuge

Product Description

Product Description Disc Type Industrial Oil Water Separator / Industrial Continuous Centrifuge
This kind centrifuge is a separator for separating solid, liquid and liquid for chemical, pharmaceutical, oil, foodstuff, milk industry, daily industry and defense industry etc.. It has three types for solid discharge such as central value deslagging, artificial deslagging, and water push deslagging. The first type is mainly used in the desoponificating of oil refining, and the last two types are used in degumming and dehydrating, they are all applicable for liquid-liquid-solid and liquid-solid separation.
It has advantages of high speed, smooth operating, compact structure, small footprint, all sealed of the inlet and discharge, little noise, good separation.
Centrifuge machine Standard design
The machine consists of a frame that has a horizontal drive shaft with clutch and brake, worm gear , lubricating oil bath and vertical bowl spindle in the lower part.
The bowl is mounted on top of the spindle in the lower part. The bowl is mounted on top of the spindle , inside the space formed by the upper parts of the frame , the ring solid cover, the collecting cover, and frame hood . The feed and liquid discharge system , including the paring disc pump for the heavy phase, also rests on this structure. All parts in contact with the process liquid are made of stainless steel. The bowl is of the solid-ejecting disc type with hydraulic operating system. The electric motor is of the variable frequency drive type or of controlled-torque type.
Basic equipment
Concentrator or purifier parts, inlet and outlet devices, revolution counter, set of erosion-protective parts ,illuminated sight glass box for light phase outlet , vibration switch , vibration-isolating base plate , flange motor, set of tool and standard set of spare.
Optional extras
Started equipment, frequency converter, discharge control panel, standard set of fittings, set of CIP valves and fittings and serviceability package for online viewing of separator status
Centrifuge machine Main Parameter:

Model	Bowl Speed(rpm)	Capacity(Per Hour)	Running Load(Watts)	Dimensions, Overall (mm)
				Width	Front-to-Back	Height
250	8500	500-800	4.0	850	850	1200
270	7300	1000	4.0	950	950	1200
300	7150	1500	5.5	1025	1300	1300
360	7056	2000-3000	7.5	1500	1100	1500
400	7038	3000	7.5	1500	1100	1550
500	6600	5000-8000	15.5	1772	1500	1855
550	6200	8000-15000	18.5	1970	1560	1970
730	4900	50000-80000	55.0	2580	1980	2340

Application : Dairy separator: skim milk or clarify milk (out of solid impurities). Small separation machine is hand-driven, artificial
discharge, suitable for pastoral herdsmen's home use ; large separators for industrial production, electric drive, automatic or artifical discharge.
Mineral oil separator: for fuel oil, diesel oil, lubricating oil and transformers oil etc similar emulsion,remove mechanical
impurities and water.
Vegetable oil separator: for vegetable oil refining.
Animal oil separator: for refining animal fat in meat processing, or for fish oil concentration and separation processing.
Yeast separator: for concentrated yeast, nozzle discharge.
Starch separator: for removing protein in the starch and concentrating starch, nozzle discharge.
Lanolin separator:in wool industry for extracting lanolin,nozzle discharge.
Pharmaceutical disc separator: for the extraction of antibiotics, vitamins in the pharmaceutical industry;also for separating
liquid-solid three-phase mixture in the pharmaceutical and chemical industry.
Beer separator: for beer, malt juice and other beverages clarification.
Latex separator: for concentrating rubber latex and out of impurities.
Paint separator: for separating impurities in the coating, to improve the quality of the coating. Material data
Bowl body , hood and locking ring S.S304
Solids cover and frame hood S.S
Frame bottom parts green cast iron , cald with
In and outlet parts S.S
Gasket and o-ring Nitrile rubber
Operating principles
Separation takes place inside a rotating bowl. The feed is introduced to the rotating centrifuge bowl from the top via a stationary inlet pipe (1),and is accelerated in the distributor(2),which was specially designed to ensure smooth acceleration of the feed liquid(4). Leaving the distributor, the feed enters the disc stack(3). The separation into liquid-liquid-solid takes place between the discs, with the oil phase moving through the disc stack to the centre. When it reaches the centre, it is discharged through hole (5) and ejected into the collecting frame. The water and heavy solid separated from the oil move to the periphery, and the water flows via channels in the top disc(6) to the paring chamber, where it is pumped out of the rotor by means of a built-in paring disc(7).During purification, hot water is fed into the inlet of the bowl before the process liquid is introduced. The water forms a seal around the outer edge of the top disc. The solid collect in the periphery where they are discharged intermittently via the centrifuge cyclone. The solid are discharged by means of a hydraulic system, which forces the sliding bowl bottom(8)to drop down at preset suitable intervals, thus opening the solid ports at the bowl periphery
Disc separator types:
More details picture:
How it works the disc centrifuge separates solids and one or two liquid phases from each other in one single continuous process, using extremely high centrifugal forces. When the denser solids are subjected to such forces, they are forced outwards against the rotating bowl wall, while the less dense liquid phases form concentric inner layers. The area where these two different liquid phases meet is called the interface position. This can be easily varied in order to ensure that the separation takes place with maximum efficiency. Inserting special plates (the "disc stack") provides additional surface settling area, which contributes to speeding up the separation process dramatically. It is the particular configuration, shape and design of these plates that make it possible for a disc stack centrifuge to undertake the continuous separation of a wide range of different solids from either one or two liquids. The concentrated solids phase formed by the particles can be removed continuously, intermittently or manually, depending on centrifuge type and the amount of solids involved in the specific application. Company Profile
Liaoyang Shenzhou Machinery Equipment Co., Ltd. belongs to SHENZHOU Group.We mainly produce decanter centrifuges, Disc centrifuge,Tubular centrifuge,Flat centrifuges, stacked screw dehydrators, centrifugal dehydrators, integrated sludge thickening and dewatering machines, complete sludge dewatering equipment, sewage treatment equipment, planetary gear differentials, and related supporting equipment for decanters (such as sludge cutting machines, shaftless screw conveyors, integrated flocculant preparation systems, etc.).
With a production history of over 40 years, our products are distributed throughout the country and have gone abroad. Having the ability to design and develop centrifuge products, obtaining national patent applications, and obtaining CE and ISO9001 approvals and certifications.
Others products:
Packaging & Shipping
Our service The technical and after-sale services are listed as follows: 1. Provide free technical training, guidance and information of accessories. 2. Our technical staff could instruct our customers on the installation of connector and accessories , and deal with technical and quality issues. 3. Our products with 1 years' warranty and life maintenance. 4. Our company will provide technical services by phone, fax, e-mail, etc., please refer to the contact details. 5. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation. Contact person: Cathy Once receive the calling of complaints, we will respond to it within 12 hours at working time and provide solution within 48 hours. If necessary, our company will send technical staff there and provide on-site solution.

---
