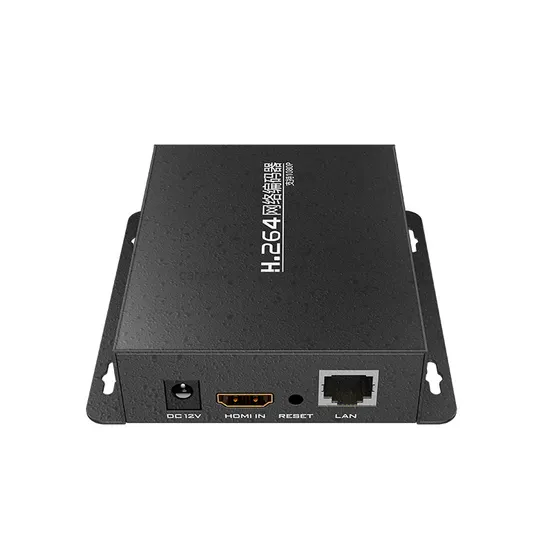

1080P HDMI Video Encoder for IPTV Live Stream Broadcast

Product Description

Mini HD 1080P HDMI Video Encoder H.264 IPTV Encoder for IPTV, Live Stream, Broadcast Support RTMP RTMPS SRT RTSP RTP UDP HTTP ONVIF FLV HLS TS Protocols and Live Platforms Product Features:

The main and sub-group streams are more reliable
HDMI high-definition 1920x1080p
Support H.264 high efficient video coding, clearer image, lower occupied bandwidth
Pure hardware coding, more stable and reliable
Support subtitles, logos, etc.
Live broadcast platform, main and sub-group push stream
Compatible with various live broadcast platforms
Easy to operate, no settings required
Support multiple resolution custom settings
Metal shell, fast heat dissipation


Technical Parameters:

Specifications		parameter
Audio and video input	Video input	1 port HDMI
	Audio input	1 port HDMI built-in audio
Video coding	Coding type	H.264
	Coded frame rate	5-60 adjustable
	Key frame interval	5-300 adjustable
	Bit rate (kbit)	32-32000 adjustable
	Coding resolution	1920x1080/ 1680x1056/ 1280x720/1024x576/ 850x480/ 720x576/ 720x540/ 720x480/ 720x404/ 704x576/ 640x480/ 640x360/ 608x448/ 544x480/ 480x480/ 480x384/ 480x360/ 480x332/ 480x272/ 480x270/ 400x320/ 400x224/ 352x480/ 352x352/ 352x228/ 320x256/ 320x240/ 320x180/ 240x180/ 176x144/ Same as input resolution
	Code stream control	CBR/VBR optional
	Stream	Support RTMP/ RTSP/ HTTP FLV/ HLS/ UDP multicast/ RTB multicast
Audio coding	Coded sampling rate	44100/48000 optional
	Coding method	AAC+/ AAC++/MP3/ MP2/AC3 optional
	Coding bit rate	AAC:48000-320000adjustable / AAC+:2400-48000adjustable / AAC++:12000-320000 adjustable / MP3:64000-320000adjustable / MP2:64000-320000adjustable / AC3:40000-640000adjustable
	Digital volume	-50 ~ 50 adjustable
	RTSP stream uses G711A encoding	Disable/ Enable optional
OSD	Transparency	0-128 adjustable
	Type	Text/ picture/ scrolling text
	Area	4 areas available
	X coordinate	0-1920
	Y coordinate	0-1080
	LOGO	4 logos can be uploaded for selection
	Font size	8-72
	Background color	Transparent/ white/ black
	Font color	RGB color is optional
General use	Network	Support Gigabit networks
	Configuration management	Configuration management via the WEB
	ONVIF	Support ONVIF search browsing videos
	Power	DC 12V, 1A
	Power consumption	4W
	Operating temperature	-20ºC - 60ºC
	Operating humidity	<90%, no condensation
	Dimension	10.4x10.4x2.7cm(includes wall hanging)

Packing List


Network Encoderx1
Power adapter x1
HDMI cable x1
User manual x1

---
