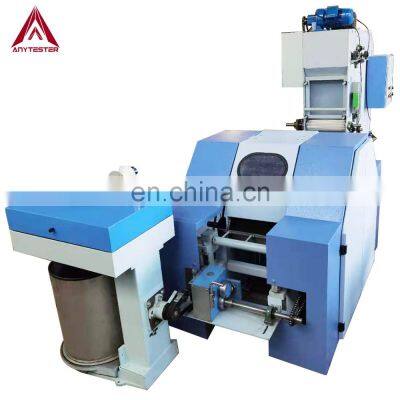

Product DescriptionAT202 Laboratory Carding Machine is part of the mini spinning system. It’s mainly used in university, researching center, etc. Itis used to disentangle, clean and intermix fibers to produce a continuous web or sliver suitable for subsequent processing. Bypassing the fibers between differentially moving rollers covered with card clothing, it breaks up locks and unorganized clumps offiber and then aligns the individual fibers to be parallel with each other.SpecificationsFeeding width 400mmWorking width 360mmCylinder diameter Φ450mmDoffer diameter Φ220mmLicker-in diameter Φ165mmWorking roll diameter Φ110mmWipe roll diameter Φ90mmSpeedAdjustable (Frequency converter control)Max. fiber lengthabout 100mmVillus bucket power1.5KWOutput capacity5~10kg/hMaine machine powerAC220V/380V, 50/60Hz, 2.2KWDimension1350mm*950mm*900mm (main machine)Weight650KgDetailed Images★ Can be used for wool fiber or chemical fibers★ Suit for the fiber with max length of 100mmEquip with a Villus Bucket ★ Could Feed the fiber automatically ★ Have the part function of opening ★ Make the fiber feeding more eveness ★ Could Output both of sliver and web ★ With full-closed protective cover. ★ Two rollers feeding ★ Mini type machine, save researching cost and easy to operate and maintainPacking & DeliveryPackagingSize(cm)180(L) * 110 (W) * 110 (D)Weight650 KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Related Products Contacting usLily ChengWebsiteMobile Phone+86 180 5517 3820Whatsapp+86 180 5517 3820Skype1933039910@qq.comWechat+86 180 5517 3820Our CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most product
>>
