LC8020 Low Profile Platform Sorting Scales Load Cell Rated Range 20kg Single Point Load Cell

Product Description

LC8020 Rated Range 20kg Low Profile Platform Sorting Scales Load Cell Single Point Load Cell

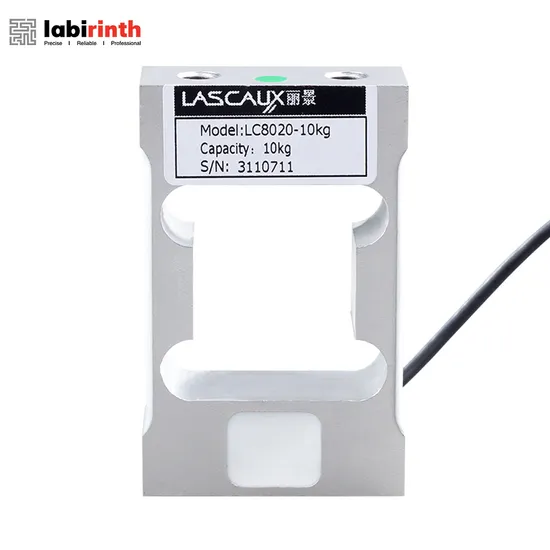

Product DescriptionLC8020 Platform Type Load Cell
Description:LC8020 sensor is a low-range sensor designed for electronic scales and platform scales. Made of aluminum alloy, with anodized surface, it has good bending and torsion resistance and IP65 protection level. It is suitable for counting scales, packaging scales, and weighing in the food, medicine and other industries, especially for mass production operations.Model: LC8020
Features:
1. Capacities (kg): 5 to 20
2. High comprehensive, high stability
3. Compact structure, easy to install
4. Small size with low profile
5. Anodized Aluminum Alloy
6. The four deviations has been adjusted
7. Recommended Platform size: 200mm*200mm

Rated Load	kg	4,5,8,10,20
Rated Output	mV/V	2.0±0.2
Zero Balance	%R.O.	±1
Comprehensive Error	%R.O.	±0.02
Non-linearity	%R.O.	±0.02
Hysteresis	%R.O.	±0.02
Repeatability	%R.O.	±0.02
Creep/30 minutes	%R.O.	±0.02
Compensated Temp. Range	ºC	-10~+40
Operating Temp. Range	ºC	-20~+70
Temp. effect/10ºC on output	%R.O./10 ºC	±0.02
Temp. effect/10ºC on zero	%R.O./10 ºC	±0.02
Recommended Excitation Voltage	VDC	5-12
Maximum Excitation Voltage	VDC	15
Input impedance	Ω	410±10
Output impedance	Ω	350±5
Insulation resistance	MΩ	≥5000(50VDC)
Safe Overload	%R.C.	150
Ultimate Overload	%R.C.	200
Material		Aluminum
Degree of protection		IP65
The length of the cable	m	1m
Wiring code	Ex:	Red:+ Black:-
	Sig:	Green:+ White:-
Recommended Platform size	mm	200*200
Tightening Torque	N·m	10

ApplicationsThe Single Point Load Cell is widely used in retail scales, pharmaceutical scales, packaging machines, sorting scales, and other applications. Its working principle is based on the conversion of force into an electrical signal.
Below is how it works in these applications:• Retail Scales • Pharmaceutical Scales • Packaging Machines• Sorting Scales Retail Scales:
Single point load cells are commonly used in retail scales for accurate weight measurement. When an item is placed on the scale, the weight applied is transferred to the load cell's sensing element.The strain gauge inside the load cell deforms slightly under the applied load, causing a change in resistance. This change in resistance is then converted into an electrical signal, which is amplified and converted into a weight reading by the signal processing system.Pharmaceutical Scales:
Pharmaceutical scales require high precision to ensure accurate measurement of drug components. The single point load cell plays a critical role in this application. When drugs or chemicals are placed on the scale, the load cell measures the applied weight and converts it into an electrical signal that is sent to the display system.The design of single point load cells allows them to work efficiently on smaller scale platforms, which is especially important for laboratory equipment and precise drug formulation devices. Packaging Machines:
In the packaging industry, single point load cells are used to precisely control the weight of products. For example, in packaging lines, single point load cells can measure bulk materials (such as powders, grains, etc.) to ensure that each package contains the correct weight.The load cell continuously monitors the weight and provides feedback to adjust the filling process, preventing overfilling or underfilling of products. Sorting Scales:
In sorting scales, single point load cells accurately weigh each parcel or item to enable automated sorting. These sensors measure the weight of each object and convert it into an electrical signal that is then used by the sorting system to determine the destination of the item.Additionally, load cells in sorting scales can monitor weight fluctuations in real-time to ensure the sorting process is accurate and efficient.Summary: The working principle of the single point load cell is based on the strain gauge and force conversion. When load is applied to the sensor, the strain gauge deforms, changing its resistance, which produces an electrical signal proportional to the load. This signal is processed and converted into a weight reading, suitable for various precise weighing applications such as retail scales, pharmaceutical scales, packaging machines, and sorting scales. Due to its high precision and ease of installation, the single point load cell is a common and reliable weighing solution in these industries.Certifications
Company ProfileLabirinth Microtest Electronics (Tianjin) , Ltd. is located in Hengtong Enterprise Port in Tianjin, China. It is a manufacturer of load cells and accessories, one of the professional companies that provide complete solutions on weighing, industrial measurement and control. With years of study and pursue on sensor productions, we strive to provide professional technology and reliable quality. We can provide more accurate, reliable, professional products , technical service, which can be applied for varieties of fields, such as weighing devices, metallurgy, petroleum, chemical, food processing, machinery, paper making, steel, transport, mine, cement and textile industries.
We would like to become your ideal partner, not only the field of sensors, With our twenty years' study and practice in industrial measurement and relevant products, we are very happy to share our experience with partners.
Electronic weighing measurement technology is changing our world, work and life, in order to provide more perfect, efficient, reliable products and solutions, we are willing to make progress, eventually to be an ideal partner for development .
"Precise; Reliable; Professional" is our working spirit and action creed, we are willing to carry it forward, which can guarantee the success of both parties.
The sensor products we manufacture include: SINGLE POINT load cells, S-Type load cells, single-ended shear beam load cells, double-ended shear beam load cells, LOW PROFILE DISK load cells, MICRO load cells, as well as WEIGHING MODULES, ON-BOARD WEIGHING kits, TENSION measuring devices, and weighing display transmitters, among other accessories and combinations.

Each year, we participate in major exhibitions such as the 2021 Guangzhou Unmanned Retail Expo, the 2023 Shanghai Weighing Expo, and the 2024 Nanjing Weighing Expo. We warmly welcome partners from around the world to explore our high-quality weighing load cell products and solutions.

Our advantages:
20 YEARS	ONE-STOP SOLUTION	PROVIDE DESIGN AND CUSTOMIZATION SERVICES	POWEFUL AND PROFESSIONAL TEAM	FASTER AND MORE EFFICIENT WEIGHING
After 20 years of product development and manufac turing history,we are rich-ex- perienced and trustworthy in load cells and accessories	We offer complete solutions of full measurement chain weighing and force measurement,which involves aluminum and steel load cells weighing display transmitters and measurement solutions.	We manufacture standard load cell products,which can also be designed and custom- ized according to your special requirements.	We own powerful and profes sional team with numbers of senior expert R&D engineers who focus on machinery,elec tronics,automation and many other directions.With 20years of industrial application accu- mulation, we make the applica- tion more professional.	Our vision is "enjoy fast weighing."We are committed to "faster and more efficient weighing.".and we can provide a series of products and solutions in this regard.

Packaging & Shipping
Our ServicesService standards: we are committed to provide a high quality and responsive service to all clients
The fastest reply: Please feel free to contact us if you have any questions. You will get a reply from the professional and experienced trade manager within 24 hours. If our trade manager is off line, please leave a message, and tell us the load cell you need and your E-mail address.
Quality assurance: good quality is assured by advanced manufacturing technology. And all weighing sensor products are through strict test by our professional QC team before shipping.
Door to door service: We usually send the parcel by DHL, EMS and TNT etc. The tracking number will be sent to you after delivery. It usually takes 5 working days to reach from from our side to your side, which is very convenient for your business.
OEM&ODM available
FAQ1. How to place an order for products?
et us know your requirement or application, we will give you a quotation in 12 hours. Then we will send the PI after you confirm the order.
2. What is the MOQ?
If we don't have it in stock, the MOQ is different according different weighing load cell models. If we have it in stock, we can ship you even 1 pc as sample.
3. What is lead time?
If we have it in stock, we can ship it to you within about 3-5 working days.
If we don't have it in stock, the lead time will be 10-30 days normally.
4. What is the express delivery?
DHL, Fedex, TNT ,EMS, UPS etc. We will choose the safe and cheapest way for you to reduce your cost. Economic shipping way: by sea, by air transport .If you place mass order with us, the shipping way of by sea or by air transport will be ideal choice.
5. What is the quality guarantee?
Quality guarantee: 12 months. If the product has quality problem within 12 months, please return it to us, we will repair it; if we can't repair it successfully, we will give you a new one; but the man-made damage, improper operation and force majeure will be excepted. And you will pay the shipping cost of returning to us, we will pay the shipping cost to you.
6. Is there any after-sale service?
After you receive our product, if you have any questions or need any assistance, we canprovide you the after-sale service by e-mail, skype, trade manager, telephone and QQ etc.
7.What information do I need to provide before placing an order?
The size, capacity and usage are necessary. Besides, we may need some other parameters.
8.Are you a trade company or factory?
Our company is factory and directly sales.
9.How's the package?
Normally are cartons, but also we can pack it according to your requirements
10.Do you support drop shipping?
Yes, your drop shipping is available.

---
