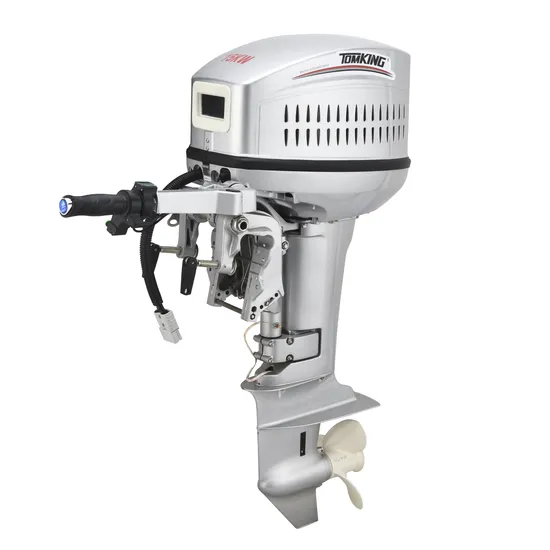

Water-Cooled 96V15kw Electric Outboard Motor/ Outboard Engine/ Boat Engine/ Trolling Motor

Product Description

Build in 2009, our company is located in Wuyi county,Jinhua city, Zhejiang Province, we own two factories manufacturing products of two different categories, one makes garden machinery such as gasoline brush cutter, earth auger, hedge trimmer, mini tiller and other relative garden use machinery. The other makes marine products like outboard motor, electric outboard motor, infltable boat, aluminum boats and stand up paddle board.
Product Description
Electric Outboard Motor
Motor: DC Brushless PMSM
Volage/Power: 96V/15KW
Max. current: 150A
Motor: DC Brushless motor PMSM
Undervoltage Protection (V): 68
Overvoltage Protection (V): 120
Rotating speed: 5500r/min
Gear shift: Reverse/Forward
Cooling system: Water cooling
Gear box capacity: 250ml
Recommended Gear oil:Hypoid gear oil SAE #90
Propeller diameter: 9¼ * 12-J
Transom height(short/long shaft optional): 44cm/57cm With power display Rec.boat size: 4.2m - 7.0m
G.W./N.W.: 55/51kGS
Packing Size: 122*70*39cm
Loading Qty.: 80PCS/20GP
Without battery
Adaptable battery voltage range (V): 72- 108
Recommend battery: 96V/200AH
The duration of 96V/200A battery is1.2H working on the 5.2m aluminum boat with loading 900KG, the max speed is 35KM/H

---
