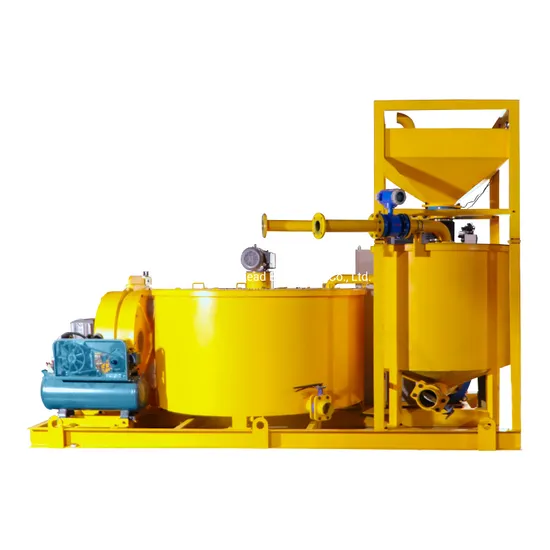

LGP1200/3000/300h-E New Compact Grout Plant for Mining

Product Description

LGP1200/3000/300H-E new compact grout plant for mining
Description of grout plant:
LGP1200/3000/300H-E Grout Station is a combination of the mixer, agitator and grouting pump in one plant, mainly used to mix cement, bentonite slurry for grout and backfill grout injection in ground and underground construction or TBM tunnel construction, such as highways, railways, water and electricity, construction, mining etc. This station is equipped the automatically batching weight system and PLC control system to automate operations. Compact size and it is easy to operate. It also takes up a small space.
Features of grout plant:
1. Automatically batching and automatically mixing system
2. High turbulence mixing
3. PLC control system, operation mode can be operated automatically and manually;
4. Mixer, agitator, hose pump in one frame base, compact size.
5. Heavy duty industrial hose pump

Technical data:

Name		Data
Type		LGP1200/3000/300H-E
Weighting	Sensor	S-type tension pressure sensor
	Load	800Kg
	Output Signal	Current signal
	Vibration Motor	24V, 4KN, 0.37Kw
Mixer	Volume	1200L
	Slurry Pump Power	11Kw
	Output	80m3/h
Agitator	Volume	3000L
	Geared Motor Power	3Kw
	Speed	45rpm
Hose pump	Output	300L/min
	Pressure	1.6MPa
	Power	18.5Kw
Air compressor		2.2Kw
Power supply		220V(380V,415V Multiple choices)
Dimension		4150×2100×2750mm
Weight		4000Kg
We could also customize according to your demands.

Detailed Images:

Application:
Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting;
Building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, terrg grouting;
Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement
Mine application - roadway reinforcement, backfill, waterproof grouting
Certificate:

FAQ:
We have many kinds of grouting equipment for your reference, in order to recommend you more suitable models grouting equipment, please let us know clearly about your requirements:
1. what project will you do with grouting equipment? for dam, foundation treatment or micropile,etc?
2. what is the output and pressure of pump?
3. what is water cement ratio?
4. which engine do you prefer? electric motor or diesel engine?
if you want to know more about our grouting equipment, please feel free to contact with me.

---
