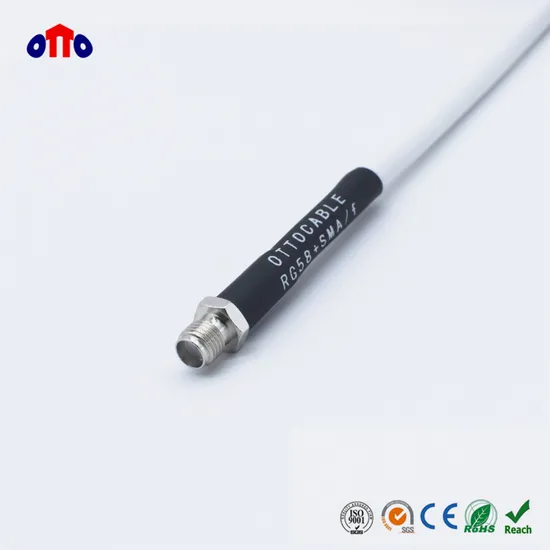

| RG58 Coaxial Cable | |||
| Construction | |||
| Item | Material | Diameter(mm) | |
| Inner Conductor | TC / BC / CCS | 1*0.9 / 19*0.18 | |
| Dielectric | Solid PE | 2.95 | |
| Shield | TC / BC/ CCA Braid(80,96,112,128) | 3.45 | |
| Jacket | PVC | 4.95 | |
| Electrical Characteristics | Attenuation @20ºC (dB/100M) | ||
| Impedance(Ω) | 50 | @100MHz | 15.2 |
| Velocity of Propagation(%) | 66 | @500MHz | 42.6 |
| Shielding Effectiveness(dB) | ≥85 | @900MHz | 53.0 |
| VSWR(dB) | 1.25 | @1000MHz | 56.0 |
| Operating Temperature(ºC) | -30 to +70 | @2000MHz | 79.0 |
| ----- | ----- | @2500MHz | 95.5 |
