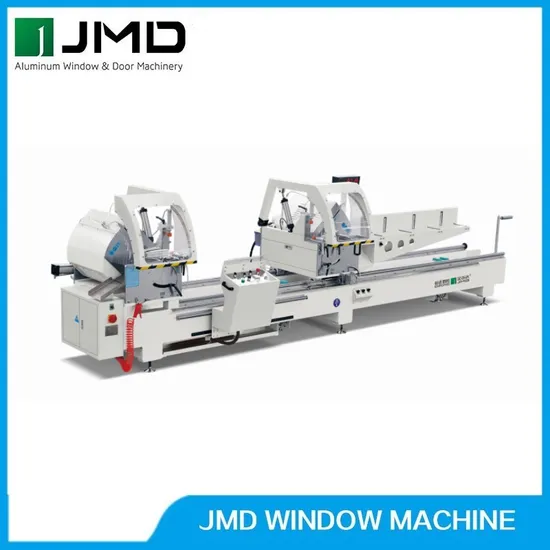

Aluminium Window Cutting Machine Double Bevel Sliding Mitre Saw Aluminium Window Making Machine

US$9,000.00-14,000.00 1 Set (MOQ)

Basic Info.

Model NO.

LJJ2AX-500*4200

Automatic Grade

Semi-Automatic

CNC or Not

not CNC

Voltage

380V

Scope

Aluminum Window Machine

Max Cutting Height

300mm

Input Power

4.4kw

Cutting Angle

45/90

Max Cutting Width

138mm

Power Supply

380V 50Hz

Air Pressure

0.5-0.8MPa

Blade Rotational Speed

3200r/Min

Saw Blade Specification

500*4.4*3.3*30*120p

Cutting Length

270-4200mm

Cutting Height

300mm

Outside Dimension

5530X1750X1900mm

Weight

1700kg

Useage

Aluminum Cutting Saw

Transport Package

Wooden Case or Steel Pallet

Specification

5560*1750*1900mm

Trademark

JMD

Origin

Shandong, China

HS Code

8461500090

Production Capacity

500 Pieces Per Year

Product Description

Aluminum Cutting Saw for window door/Aluminum profile
(LJJ2AX-500x4200)
1. Aluminum Window Saw Features
1.1 Headstock (for driving saw blade) made by professional manufacturer1.
1.2 Saw blade: Wagen; Cable & electric wires: ConCab; Pneumatic components: AirTAC
1.3 Saw blade feeding driven by hydraulic damping cylinder through HIWIN linear guide rail pair
1.4 Pneumatic profile supporting system & pneumatic right machine head lock system
Cutting length digital displayed

2. Technical Parameter
3. Detailed Photos of Aluminum cutting machine
4. Associated Aluminum Window Saw
5. Company Information
6. Our Team
7. Delivery of Aluminum Window Machine
8. Clients
