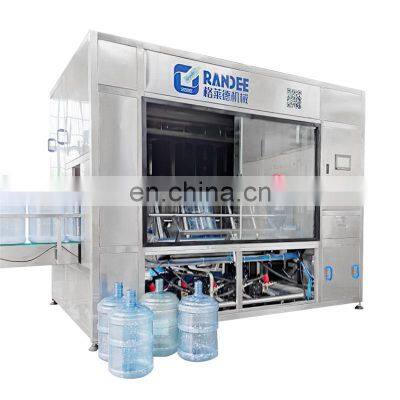

5 Gallon Bottle Washer Machine / Rinsing Machine / Washing Machine Product Description Brief introduction :The washing machine is used for cleaning barrel inside before filling process. It consist of transmission machine, brusher, water pump, setting 2 brushing working place, spurt interior and exterior with water, rotate washing to carry out empty barrel’s whole part was washed, the washing quality is stable.The machine is used for cleaning barrel outside before filling process. It consists of transmission machine, brusher, water pump. Setting following function: main brusher, bottom brusher, side brusher and so on. Exterior brushing and spray with water, rotate brush can carry out cleaning the outside barrel, washing quality is stable. Machine picture: Outside and Inside Brushing Machine (2-in-1) Inside and outside burshes Main technical data:Inside brushing heads3pcsOutside brushing heads4pcsProduction capacity450BPH for 5 gallon barrelBarrel typeΦ270×490×Φ56(5 gallon)Air pressure0.7~0.8Mpaair consumption200L/minMotor power1.2kwVoltage380V 50HZ/3PDimension1300*930*1700mmWeight800kg Detailed Images1. Automatic Decapper This de-capping machine is designed for 5 gallon / 20L bottle water fillingproduction line. It's used to pull out the cap of recycling bottle by AIRTAC air cylinder before rinsing, the decapper head is more unique and stronger. 2. Automatic rotary brushing machine The running direction of the main rotating brush and the direction of the barrel and the bottom of the barrel rotating brush reverse rotation. Barrel in the role of the dial wheel completed the revolution of one cycle, rotation around the compound motion. Washing pump constantly to the brush water spray or cleaning agent, and collected by the lower water tray into the cleaning agent tank for recycling use. 3. QGF-900 5 gallon / 20L bottle washing machine 900BPH filling production line adopts multi-channel effective station for internal washing (or according to the customer's designated washing process configuration). Including hot alkali rinse, disinfectant rinse, reflux water rinse, finished product water rinse, drip dry, etc. 4. QGF-900 5 gallon / 20L water filling capping machine Filling machine adopts the method of pressure filling. After the product enters the liquid cylinder, the feed pipe flows into the filling valve. Each filling valve has a backflow line to ensure the filling pressure is stable, thus ensuring the smooth filling in all cases. Cam track is used to control the filling valve to ensure the smooth filling process.Liquid level difference is controlled in 1cm.Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.5. Light checker and steam heating shrink machine: Inspection light is used for lighting when inspect whether exist sundries in barrel.Heat shrinking machine is consist of water vessel and electric heat up, electric heat up to produce steam. 6. Laser printer Power: 20wPackaging dimension: 1200*500*700mmUsing patented technology, the electric fan heat dissipation way more efficient, more stable, more reliable.Adopt Korean samsung embedded control system 10 inch touch screen control, easy to use and beautiful.Compared with the ordinary inkjet machine high temperature resistance, anti - dust, anti - interference characteristics 7. Automatic bag packing machine and stacker / palletizerThis equipment adopts servo motor, automatic temperature control, free adjustment of bagging tightness and other new technologies, all actions, detection and control are controlled by microcomputer (PLC).Stacking machine is to put the finished water of the already filled barrels on the tray in a certain arrangement for automatic stacking, which can be stacked for multiple layers and then rolled out to facilitate forklift transport to the warehouse for storage. Company information Our exhibition FAQ Q1: How to find suitable 5 gallon water filling machine or complete 5 gallon water production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn Q2: How to start a water factory business ? What's my budget?A2: First confirm the source water, send the water samples to your local department and get an water analysis report, then tell us how many tons or liters per your you want to make, like 2000liters/hr, 4000liters/hr, 6000liters/hr, etc, then we can know to choose which model for you, like QGF-80, QGF-120, QGF-150, QGF-300, QGF450, QGF-600,etc. Q3: How to confirm the bottle shapes that is very attractive for your customer ?A3: Our engineer can design 5 gallon bottle shapes with your company Logo for you. Q4: Which kinds of machines included in one complete 5 gallon water production line?A4: Semi auto or Automatic Decapping machine, internal and external brush washing machine, main 5 gallon washing filling capping machine, automatic labeling machine (optional) light checker, shrink tunnel, feeding bottle conveyors, bottle out conveyors. Q5: Are you a trading company or a manufactory?A5: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q6: Do you have technical support after we purchased your machines?A6: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q7: If you buy our machines, can you offer us wear-out spare parts?A7: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
>>
