Wiegand IC Card Reader Qr Code Barcode Door Lock Control Access System

Product Description

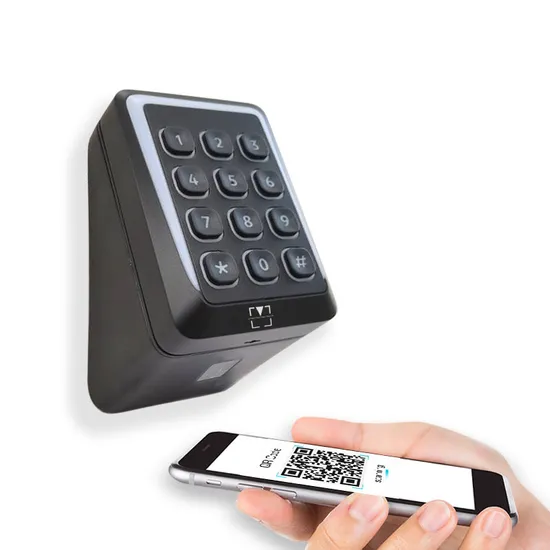

Product Overview The Cidron access control reader's compatibility with secure RFID-technologies, BLE, NFC mobile credential and QR code incorporated in a robust, yet timeless design, makes them ideally suited for both indoor - and outdoor installations in all kinds of physical access control applications

Operating Frequency	Operating Frequency
Contactless ISO Standard	ISO14443A/B, ISO18092 NFC
Contactless Cards	- EM Prox, EM4100, EM4200 - MIFARE Classic (4 byte, 7 byte), MIFARE Plus, MIFARE DESFire EV1 - ISO18092 NFC tags
Mobile ID	ISO18092 NFC, BLE
Secure Access Module	MIFARE SAM AV2, SAM card connection slot
Communication Interface	Wiegand, Clock/Data, RS485 (OSDP 1, OSDP 2, including Secure channel), BLE 4.0
Keypad	12 digit keypad
Indicators	- LED bar with red, green and Amber - Buzzer
Tamper Alarm	yes
Operating Temperature	-40° ~ +70°C
Operating Humidity	0 ~ 95% RHNC (Relative Humidity No Condensation)
Housing Dimensions	SlimLine: L=141mm, H=25mm, W=48mm Standard: L=109mm, H=25mm, W=79mm

Design & Dimension
Product Features
Configuration & Development Easy Configuration
CONFIG SOFTWARE TOOL & CONFIG CARD make users easily manage encrypted key, reader configuration and functional test.

Our Service Civintec is leading designer and manufacturer of access control device, we offer ODM customization on both hardware, reader housing, firmware and software design service.
Today, the competition is very tough in many markets, making it increasingly more important to stand out from the crowd and therefore we also offer the opportunity to profile your readers for increased recognition. You can choose between a laser engraved or printed logo in single color or in full color. This way, you get the readers to follow your or your customer's graphic profile.
