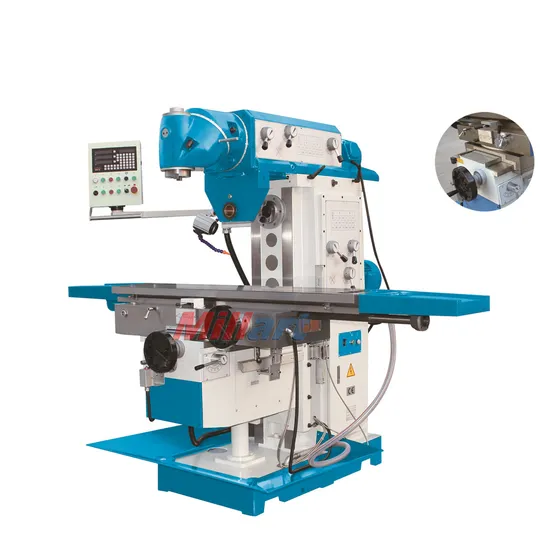

XL6436 XL6436c XL6436cl Universal Milling Machine /Arm Milling Machine

US$9,000.00
1-2 Pieces
US$8,000.00
3+ Pieces

Basic Info.

Model NO.
XL6436 XL6436C XL6436CL
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Product Name
Arm Milling Machine
Model
XL6436
Table Size
1325*360mm
Table Travel (X/Y/Z)
750/320/460mm
Arm Travel
550mm
Main Motor Power
5.5(H) 4(V)
Overall Size
1800*2100*2000mm
Net Weight
2685kg
Transport Package
Plywood Case
Specification
1800*2100*2000mm
Trademark
Millart
Origin
Tenghzou, China
Production Capacity
200units/Month

Product Description

Product Description
Feature:
Logical, clearly arranged gearshift for speed change
Hardened and polished guide ways guarantees top accuracy
Setting of the required feed speed by potentiometer on the control panel
Finely graduated feeds in all axis, driven by servo motor
Universal mill head system 'Huron' adjusts to various angles
Complete with rapid feed in x-, y- and z-axis to reduce downtime
Optimal adjustments of spindle speed and feed allow for economic machining of various materials
Specification:
Model Unit XL6436 XL6436C XL6436CL
Table size mm 1325×360 1325×360 1600×360
Table travel (X/Y/Z) mm 750/320/460 1100/320/450 1300/320/450
Table feed speed X axis mm/min 30~750 30~750 30~750
Table feed speed Y axis mm/min 20~500 20~500 20~500
Table feed speed Z axis mm/min 15~375 15~375 15~375
Spindle taper 7:24 IS050 (H)
7:24 IS050 (V)
7:24 IS050 (H)
7:24 IS050 (V)
7:24 IS050 (H)
7:24 IS050 (V)
Arm travel mm 550 550 550
Distance from spindle to table mm 196-656 196-646 196-646
Distance horizontal spindel to table mm 20-480 20-470 20-470
Distance spindle to arm mm 200 200 200
Spindle speed range r.p.m 60-1750 (V)
60-1800 (H)
60-1750 (V)
60-1800 (H)
60-1750 (V)
60-1800 (H)
Spindle speed steps steps 12 12 12
T-slots(NO./width/pitch) mm 3/18/80 3/18/80 3/18/80
Main motor power Kw 5.5 (H) 4 (V) 5.5 (H) 4 (V) 5.5 (H) 4 (V)
AC servo feed motor torque N.m 10 10 10
Overall size mm 1800×2100×2000 2245×2100×2000 2245×2100×2000
Net weight kg 2685 2750 2800

Standard accessories:
Draw bar
Coolant device
Coolant tray
Universal mill head
Automatic central lubrication
Mill arbors
Tools
Optional accessories:
3-axis digital readout
Mill chuck set
Machine vice
Horizontal & vertical rotary table
Clamping kit set 58-pcs
Universal dividing head
LED machine light Company information:
Packaging & Shipping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.
