V-Bank Air Filter Manufacturer Glass Fiber Filter Material

US$6.00 100 Pieces (MOQ)

Basic Info.

Model NO.
AOBO-008
Medium Material
Fiberglass
Efficiency
F9
Filtration Grade
HEPA Filter
Type
V Bank Filter
Size
Standard or Custom Sizes
Filtration Efficiency
H13-H14
Initial Resistance
≤250PA
Maximum Air Volume
3400m³/H
Material
Aluminum Alloy, Fiberglass
Transport Package
Inner with Plastic Bag, Outer with Woven Bag
Specification
100g/sqm-400g/sqm
Trademark
AOBO
Origin
Shandong, China
HS Code
5602100000
Production Capacity
10000kgs/Month

Product Description

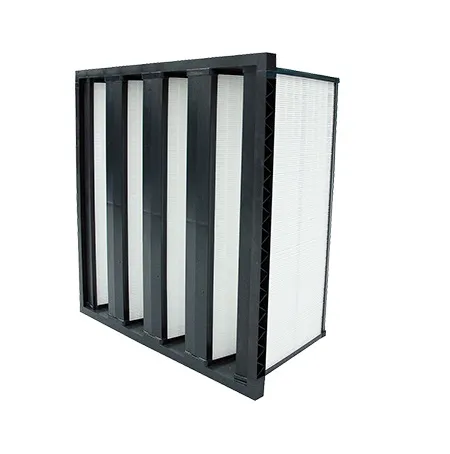

V-BANK Air Filter
main feature:
- High-efficiency filtration: V-BANK design provides a larger filtration area and improves filtration efficiency.
- Low pressure drop: Design optimization reduces air flow resistance and saves energy.
- High temperature resistance: Suitable for high temperature environments, using high-quality heat-resistant materials.
- Long life: sturdy structure, long service life, reducing replacement frequency.
Application areas:
- Industrial manufacturing: such as automobile manufacturing, electronic manufacturing, etc.
- Medical and pharmaceutical: such as sterile rooms, operating rooms, etc.
- Commercial buildings: such as office buildings, hotels, etc.
- Data Center: Protect equipment from airborne dust and contaminants
Outline Dimensions Rated Velocity /Speed Average Efficiency Rated Initial Temperature
Width * Height Size (mm) Deep Size (mm) (D) (m/s) (Pa) ÂșC
610*610 292 1.3 H13/H14 250/300 90
220 1
150 0.75
610*305 292 1.3 H13/H14 250/300 90
220 1
150 0.75
610*1220 292 1.3 H13/H14 250/300 90
220 1
150 0.75

Detailed Photos
