Two Roll Open Rubber Mixing Machine for Rubber Factory

US$3,270.00-4,800.00 1 Piece (MOQ)

Basic Info.

Model NO.
GC-6045D-3
Control Type
Artificial
Automatic Grade
Manual
Power Source
Electric
Type
Open Mixing Mill
Working
High Speed Mixer
Stirring Type
Spiral
Certification
CE, ISO
Application Area
Metallurgy&Mineral
Layout Type
Horizontal
Additional Capabilities
Milling
Operating Type
Cycle Operating
Condition
New
Roller Hardness
50 ~ 60HRC
Roller Handling
Mirror Polished Chrome
Safety Devices
Collision Emergency Stop
Product Name
Open Mill Rubber Mix Machine
Transport Package
Wooden Package
Specification
750*380*600mm
Trademark
GC
Origin
China
HS Code
9024800000
Production Capacity
300sets/Month

Packaging & Delivery

Package Size
75.00cm * 38.00cm * 60.00cm
Package Gross Weight
128.000kg

Product Description

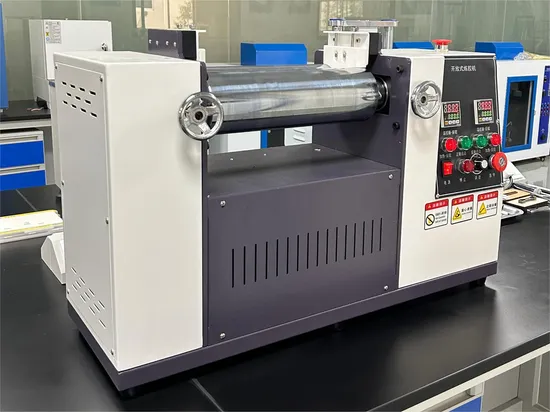

Product Description The two roll rubber open mill rubber mixing machine is a type of rubber processing equipment that is used to mix and process rubber compounds. It consists of two horizontally placed rolls that rotate in opposite directions at different speeds.
The rubber material is fed into the gap between the rolls, which are adjustable to control the thickness of the sheet being produced. The rolls are heated and cooled to control the temperature of the rubber compound during mixing.
The open design of the machine allows for easy access and monitoring of the mixing process.
This type of machine is commonly used in the rubber industry for producing various rubber products such as tires, belts, hoses, and seals.
Product Parameters
Product name Open Mill Rubber Mixing Machine
Item model GC-6015D-3
Conrtol mode Keystoke Control
Machine size 750*380*600mm
Spacing display mode Scale
Roller width 300mm
Roller hardess 50 ~ 60HRC
Roller handing Mirror Polished Chrome
Roller speed 10-40r/min
Roller temperature Normal temperature/normal temperature -250 ºC
Temperature uniformity 2.5 °C
Special function Emergency stop
Total weight ≈128kg
Power AC220V, 2.2KW
