Meiyuan Aluminum Foil Tape Brown Lacquered with Liner

Product Description

Production Description

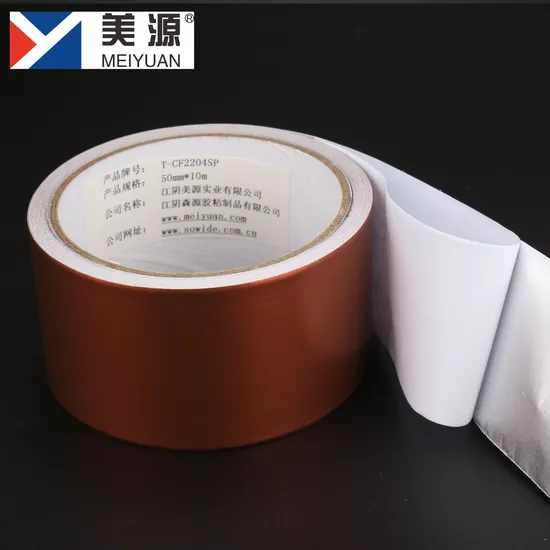

Meiyuan T-CF2204SP Aluminum Foil Tape is 22μm nominal dead soft pure aluminum foil coated with Brown paint coating and coated with high-performance solvent-based pressure-sensitive adhesive in the other side and protected by single-sided PE coated silicone release liner.
Features
¨ High Tensile Strength ¨ Good Resistance to Water and Corrosion
¨ Excellent Peel Adhesion and Permanent Bonding ¨ Nice Temperature and Aging Resistance
Applications
Suitable for bonding of seams in all aluminum foil composite materials, and sealing and mending of insulation nail puncture and breakage; insulation and vapor tightness of various glass wool/rock wool insulation boards/pipes and ducts; bonding fixation of metal lines of household appliances such as refrigerators and freezers.
Technical Data Sheet

Property	Unit	Value	Test Method
Total Thickness (without liner)	μm	62	PSTC-33 / ASTM D3652
Peel Adhesion (180°)	N/25mm	≥ 16	PSTC-1 / ASTM D3330
Tack Rolling Ball	cm	≤ 20	PSTC-6 / ASTM D3121
Tensile Strength	N/25mm	≥ 43	PSTC-31 / ASTM D3759
Elongation	%	≥ 3.0	PSTC-31 / ASTM D3759
Application Temperature	°C	10~ 40	----------
Heat Resistance	°C	-20~ 120	----------

Inner packing:
Cut roll: Printed core and shrink wrapping
Log roll: Cardboard wrapping
Jumbo roll: Plastic film + corrugated board wrapping
Outer packing:
Cut roll: Carton
Log roll: Carton + pallet / ply-wooden case
Jumbo roll: Ply-wooden case
Founded in 1998, Jiangyin Meiyuan Industries Corporation has been committed to the R&D, production and marketing of HVAC/refrigeration-specialized tape, premium composite insulation veneer, double-sided reflective aluminum foil insulation, double-sided tape and pressure-sensitive adhesive.

---
