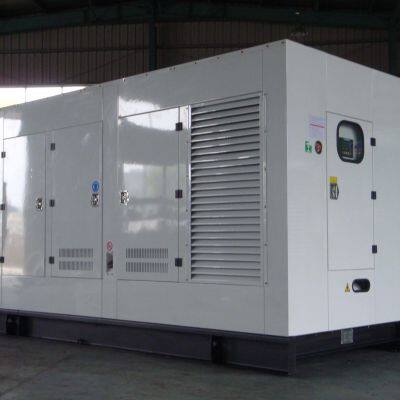

50kw 100kw 120kw 160kw 200kw 250kw 280kw 300kw Sound Proof Electric Diesel Generator

Product Details

Product Description

Product Description
50kw 100kw 120kw 160kw 200kw 250kw 280kw 300kw Sound Proof Electric Diesel Generator
1.PRODUCT Feature
power output:20KW~1380KW
Powered by water-cooled diesel engine
Alternator:Stanford,Leroy somer,Marathon,
AMF panel with ATS
Soundproof,weather proof,trailer type for optional
Manual of engine,alternator and control system
with two storage battery and silencer
Fuel tank for 8 H running based on frame
1 year or 1000 H guarantee
2.Technical specifications( 20KW~1380KW )

SPECIFICATION SHEET FOR 50HZ GENERATOR SETS
(1500 rpm, 3-phase 4-wire, 230/400V, PF=0.8)
Generator Set Model		Prime Power		Standby Power		Engine		Maximum current(A)
Prime	Standby	KW	KVA	KW	KVA		Power (kw)
SP-C20P-1	SP-C22S-1	20	20	22	22	4B3.9-G1	24-27	96
SP-C20P-1	SP-C22S-1	20	20	22	22	4B3.9-G2	24-27	96
SP-C25P	SP-C28S	20	25	22	27.5	4B3.9-G1	24-27	40
SP-C28P	SP-C30S	22	27.5	24	30	4B3.9-G2	24-27	43
SP-C40P	SP-C44S	32	40	35	44	4BT3.9-G1	36-40	64
SP-C40P	SP-C44S	32	40	35	44	4BT3.9-G2	36-40	64
SP-C43P	SP-C48S	34	42.5	40	50	4BTA3.9-G2	50-55	72
SP-C50P	SP-C55S	40	50	44	55	4BTA3.9-G2	50-55	79
SP-C56P	SP-C62S	45	56	50	62	4BTA3.9-G2	50-55	89
SP-C60P	SP-C65S	48	60	52	65	4BTA3.9-G2(QC58)	58-64	94
SP-C65P	SP-C70S	52	65	56	70	4BTA3.9-G2(QC58)	58-64	101
SP-C73P	SP-C80S	58	72.5	64	80	4BTA3.9-G11	70-80	115
SP-C80P	SP-C85S	64	80	68	85	4BTA3.9-G11	70-80	123
SP-C85P	SP-C93S	68	85	74	92.5	4BTA3.9-G13	87-97	134
SP-C85P	SP-C93S	68	85	74	92.5	6BT5.9-G1	86-92	134
SP-C95P	SP-C105S	76	95	84	105	4BTA3.9-G13	87-97	152
SP-C94P	SP-C100S	75	94	80	100	6BT5.9-G1	86-92	144
SP-C100P	N.A	80	100	N.A	N.A	4BTA3.9-G13	87-97	144
SP-C100P	N.A	80	100	N.A	N.A	6BT5.9-G2	86-92	144
SP-C100P	SP-C110S	80	100	88	110	4BTAA3.9-G3	96-106	159
SP-C100P	SP-C110S	80	100	88	110	6BT5.9-G2(QC96)	96-106	159
SP-C115P	SP-C125S	92	115	100	125	6BTA5.9-G2	106-116	180
SP-C135P	SP-C143S	108	135	116	145	6BTAA5.9-G2	120-130	209
SP-C155P	SP-C170S	124	155	136	170	6BTAA5.9-G12	140-155	245
SP-C180P	SP-C200S	145	180	160	200	6CTA8.3-G1	163-180	289
SP-C180P	SP-C200S	145	180	160	200	6CTA8.3-G2	163-180	289
SP-C200P	SP-C215S	160	200	172	215	6CTAA8.3-G2	183-203	310
N.A.	SP-C250S	N.A.	N.A.	200	250	6CTAA8.3-G9	<231	361
SP-C225P	SP-C250S	180	225	200	250	6LTAA8.9-G2	220-240	361
SP-C250P	SP-C275S	200	250	220	275	6LTAA8.9-G3	230-250	397
SP-C275P	SP-C313S	220	275	250	313	6LTAA9.5-G3	250-280	452
SP-C313P	SP-C350S	250	312.5	280	350	6LTAA9.5-G1	290-320	505
SP-C350P	SP-C390S	280	350	310	390	6ZTAA13-G3	340-380	563
SP-C375P	SP-C413S	300	375	330	413	6ZTAA13-G3	340-380	596
SP-C388P	SP-C425S	310	388	340	425	6ZTAA13-G3	340-380	613
SP-C400P	SP-C438S	320	400	350	437.5	6ZTAA13-G2	390-415	631
SP-C425P	SP-C475S	340	425	380	475	6ZTAA13-G2	390-415	686
SP-C438P	SP-C475S	350	438	380	475	6ZTAA13-G4	400-415	686
SP-C438P	SP-C475S	350	438	380	475	QSZ13-G2	400-440	686
SP-C450P	SP-C500S	360	450	400	500	QSZ13-G5	411-470	722
SP-C475P	SP-C500S	380	475	400	500	QSZ13-G3	450-470	722
SP-C500P	SP-C550S	400	500	440	550	QSZ13-G10	463-509	794
SP-C250P	SP-C275S	200	250	220	275	NT855-GA	231-254	397
SP-C250P	SP-C275S	200	250	220	275	MTA11-G2	224-246	397
SP-C250P	SP-C275S	200	250	220	275	NTA855-G1	240-264	397
SP-C250P	SP-C275S	200	250	220	275	QSNT-G6	243-265	397
SP-C275P	SP-C313S	220	275	250	313	QSNT-G7	261-291	452
SP-C275P	SP-C313S	220	275	250	313	NTA855-G1A	261-291	452
SP-C313P	SP-C340S	250	313	272	340	MTAA11-G3	282-310	491
SP-C313P	SP-C350S	250	313	280	350	NTA855-G1B	283-321	505
SP-C313P	SP-C350S	250	313	280	350	QSNT-G1	291-325	505
SP-C345P	SP-C375S	275	345	300	375	NTA855-G2A	313-343	541
SP-C350P	SP-C390S	280	350	310	390	NTA855-G4	313-343	563
SP-C350P	SP-C390S	280	350	310	390	QSNT-G2	321-358	563
SP-C375P	SP-C400S	300	375	320	400	NTAA855-G7	343-377	577
SP-C400P	SP-C438S	320	400	350	437.5	QSNT-G3	358-392	631
N.A.	SP-C450S	N.A.	N.A.	360	450	NTAA855-G7A	<407	650
SP-C375P	SP-C412S	300	375	330	412	KTA19-G2	336-369	595
SP-C450P	SP-C500S	360	450	400	500	QSNT-G4X	407-448	722
SP-C450P	SP-C500S	360	450	400	500	KTA19-G3	403-448	722
SP-C450P	SP-C500S	360	450	400	500	QSK19-G14	402-447	722
SP-C500P	SP-C550S	400	500	440	550	KTA19-G3A	448-504	794
SP-C500P	SP-C550S	400	500	440	550	KTA19-G4	448-504	794
SP-C500P	SP-C550S	400	500	440	550	QSK19-G13	451-501	794
SP-C525P	SP-C600S	420	525	480	600	KTAA19-G5	470-555	866
N.A.	SP-C650S	N.A.	N.A.	520	650	KTA19-G8	<575	938
SP-C575P	SP-C650S	460	575	520	650	KTAA19-G6	520-570	938
SP-C575P	SP-C630S	460	575	504	630	QSK19-G12	503-565	909
SP-C588P	SP-C650S	470	588	520	650	QSK19-G6	520-592	938
SP-C600P	SP-C650S	480	600	520	650	KTAA19-G6A	<610	938
N.A.	SP-C687S	N.A.	N.A.	550	687	KTAA19-G6A	<610	992
N.A.	SP-C687S	N.A.	N.A.	550	687	KTAA19-G7	<610	992
SP-C650P	SP-C700S	520	650	560	700	QSK19-G4	574-634	1010
SP-C660P	SP-C725S	528	660	580	725	QSK19-G11	606-667	1046
SP-C660P	SP-C725S	528	660	580	725	QSK19-G11X	606-667	1046
SP-C625P	SP-C700S	500	625	560	700	KT38-G	560-615	1010
SP-C712P	SP-C787S	570	712	630	787	KTA38-G1	634-701	1136
SP-C725P	SP-C800S	580	725	640	800	KT38-GA	647-711	1155
SP-C750P	SP-C825S	600	750	660	825	KTA38-G2	664-731	1191
SP-C750P	SP-C825S	600	750	660	825	QSK38-G8	657-730	1191
SP-C800P	SP-C880S	640	800	704	880	KTA38-G2B	711-789	1270
SP-C800P	SP-C880S	640	800	704	880	QSK38-G7	705-783	1270
SP-C910P	SP-C1000S	728	910	800	1000	KTA38-G2A	813-895	1443
SP-C910P	SP-C1000S	728	910	800	1000	QSK38-G6	791-878	1443
SP-C940P	SP-C1025S	752	940	820	1025	KTA38-G5	880-970	1480
SP-C1000P	SP-C1100S	800	1000	880	1100	KTA38-G5	880-970	1588
SP-C1000P	SP-C1100S	800	1000	880	1100	QSK38-G1	876-970	1588
N.A.	SP-C1250S	N.A.	N.A.	1000	1250	KTA38-G9	<1089	1804
SP-C1135P	SP-C1250S	908	1135	1000	1250	QSK38-G2	989-1096	1804
SP-C1250P	SP-C1375S	1000	1250	1100	1375	QSK38-G5	1107-1224	1985
SP-C1250P	SP-C1375S	1000	1250	1100	1375	KTA50-G3	1097-1227	1985
SP-C1375P	SP-C1600S	1100	1375	1280	1600	KTA50-G8	1200-1429	2309
SP-C1375P	SP-C1500S	1100	1375	1200	1500	QSK38-G19	1212-1334	2165
SP-C1475P	SP-C1600S	1180	1475	1280	1600	KTA50-GS8	1287-1429	2309
SP-C1650P	SP-C1800S	1320	1650	1440	1800	KTA50-G15	1491-1656	2598

Sale promise:
SINOSTAR Power provides a full line of brand new and high quality products. Each and every unit is strictly Factory tested.
Warranty is according to our standard conditions:
a, 15 months, counted on the day SINOSTAR sold to the first buyer;
b, One year after installation;
c, 1000 running hours (accumulated); subject to the earlier one.
Service and parts are available from SINOSTAR Power or distributors in your location.

---
