Dry mix concrete shotcrete machine

Product Details

Product Description

Product Description
Application of Tunnel use dry mix shotcrete machine for sale
PZ-7D Wet-mix shotcrete machine is widely used in concrete spray construction operations of mining tunnels, culverts, subways, hydropower projects, underground works of concrete spray construction operations

Specification
Name	Tunnel use concrete dry mix shotcrete machine for sale
Production Capacity	7m³/h
Working Pressure	0.4-0.6Mpa
Maximum Aggregate Diameter	20mm
Total Weight	800kg
Overall Dimension(L*W*H)	1660*800*1100mm
Maximum Conveying Distance	200/20m(Horizontal/Vertical)
Maximum Air Consumption	12m³/min
Main Motor Power	7.5kw
Voltage Classes	380V
Inner Diameter of Conveying Pipe	Φ57mm
Rotary speed of rotor	11r/min
Feeding Height	1.1m

Features of Tunnel use dry mix shotcrete machine for sale
1. Compact structure, stable performance, convenient operation and maintenance
2. Simple process, easy operation, long delivery distance

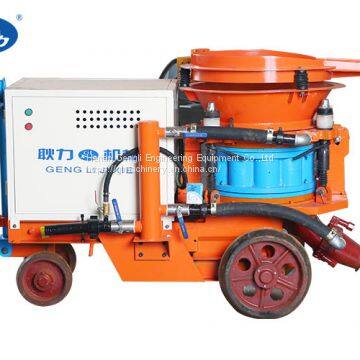

Photos of Tunnel use dry mix shotcrete machine for sale
Package and Delivery
1. Normally packed with wooden box, wooden frame but according to your demands
2. Handling time: Within 2 week. But if the model you asked are in stock, the warehouse will arrange delivery within 3 days
Photo at the working site
FAQ
1. Which model is suitable for us ?
We're a manufacturer. All kinds of models are available.Before recommend suitable model, please tell us the application, materials, working capacity , your working condition , etc.
2. How do I operate the machine ?
Please read the Operation Instruction for basic technical skills.If necessary, we provide online and onsite technical training.
3. What should I do if there is problem with the machine?
Firsly, please refer to the Operation Instruction
Secondly, please call us at any time
Thirdly, engineers are available for overseas service
4. How long the handling time ?
If there are models in stock, the warehouse will arrange delivery within 3-5 days
If no stock, normally the handling time is 2 weeks but also according to the quantity you need
5.How about package ?
Normally use wooden box or wooden frame. Your other demands are accepted
6.Payment
In general, 30%T/T prepayment before production, 70% T/T balance payment against copy of B/L
L/C is also accepted

---
