Bottle Cap Laser Coder Machine

Product Description

Main Features
Bottle Cap Laser Coder Machine
1, High marking speed, efficiency and precision
2, No consumable component, low cost and maintenance costs
3, High beam quality, small facular, can realize ultra-fine marking
4, Small heat-affected zone, avoids damage to work pieces, high yield


Technical Parameter

Model	LU2/LU5/LU10/LU15/LU20
Laser output power	2W/5W/10W/15W/20W
Laser Wavelength	355nm
Beam quality M2	≤1.2
Marking area	(100*100mm(optional))
Working distance	192±5mm
Min. character size	0.06mm
Cooling method	Water cooling
Power consumption	≤2KW
Power supply	110-240V 50Hz/60Hz
Control System	Windows (10inch touch screen)

Range of Application
UV Laser Marking Machine is widely used in LOGO marking of high-end electronic products, Food, PVC, medical packaging materials (HDPE, PO, PP, etc.) marking and drilling (d≤10μm), Flexible PCB board marking and slicing, Metal or non-metallic coating removing and Wafer.

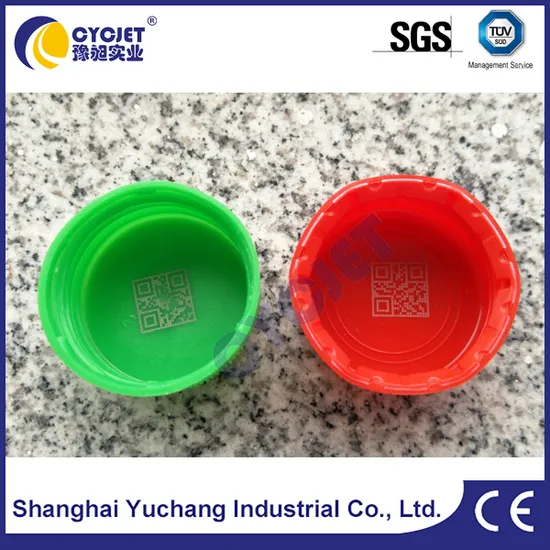

Samples Show
Company Profile CYCJET Shanghai Yuchang Industrial Co., Ltd.-professional for handheld inkjet printer and portable marking solution, located at the center of Changjiang River Delta and Eastern Sea Bright Pearl - Shanghai City. As a high-tech enterprise, our company specialize in the R&D, manufacture and sales of ink jet printer systems, handheld inkjet printer, handheld laser marking machine, portable marking solution, and so on.
