High Torque 6W and 15W DC Brushed Gear Motor for Industrial Applications

Product Description

Product Description

What is applications use gear motor?
Electric gear motors are used in various applications that require for high output torque and low output rotation speed.
What is gear motor?
Gear motor is combined electric motor with gear reducer box.
Inner Material 1)The stator is made of high quality low carbon steel seamless steel tube and ferrite permanent magnet. 2)The rotor consists of silicon steel sheet,copper coil,commutator and insulating material,etc. 3)The rotor shaft is made of high performance medium carbon alloy steel and processed by special technics.There are round shaft and gear shaft. 4)The bearing and oil seal is selected from well-known brand to ensure good running performance and sealing effect. 5)The wire is made from high temperature resistant and flame retardant material.

MOTOR FRAME SIZE	60 mm / 70mm / 80mm / 90mm / 104mm
MOTOR TYPE	Brushed
OUTPUT POWER	10W / 15W / 25W / 40W / 60W / 90W / 120 W / 140W / 180W / 200W / 300W(Can Be Customized)
OUTPUT SHAFT	8mm / 10mm / 12mm / 15mm ; Round Shaft, D-Cut Shaft, Key-Way Shaft (Can Be Customized)
Voltage type	12V,24V,90V,220V
Accessories	Electric Brake / Encoder
GEARBOX FRAME SIZE	60 mm / 70mm / 80mm / 90mm / 104mm
Gear Ratio	3K-200K
Type Of Pinion	GN Type / GU Type
Gearbox Type	Regular Square Case gearbox / Right Angle Gearbox / L Type Gearbox

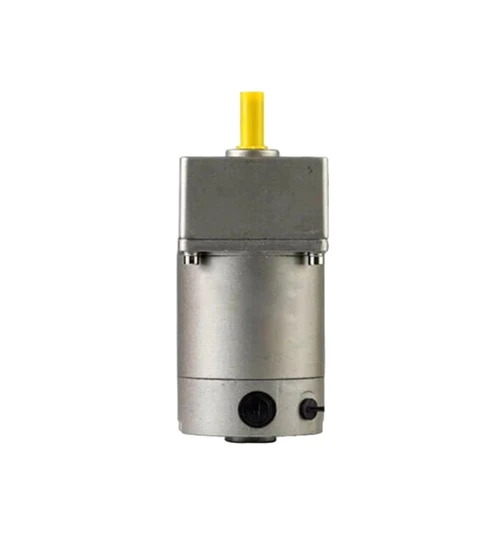

Motor Picture
Size Chart

---
