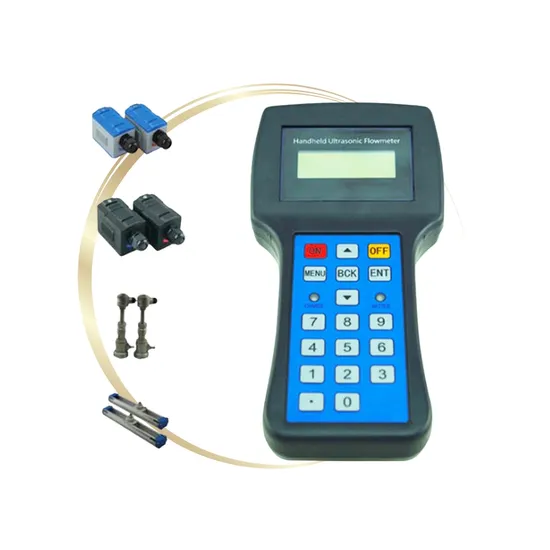

RS485 Wireless Water Digital Handheld Ultrasonic Flow Meter for Chemical

Product Description

rs485 wireless water digital ultrasonic flow meter for chemical
Product Introduction

Measurement principle:
ultrasonic time difference
principle
Measurement range : 0~±10m/s
Accuracy: flow rate is better than ±1%
Display : 2 x 10 Chinese backlit characters or 2 x 20 character LCD display, support
Three languages: Chinese, English and Italian
Flow direction: Positive and negative two-way metering, and measure positive, negative,
net cumulative flow / heat
Data interface: RS485 serial turbulence, can be upgraded by PC computer, support
MODBUS and other protocols
Data recording: positive/negative/net accumulations at 512 days, 128 months and 10
days before automatic memory More than 30 times, power off time and flow rate before
automatic memory and can be automatically or manually added
Signal output: 1 channel 4-20mA current output 1 relay output
1 channel OCT pulse output (programmable between 6~100ms pulse width, default 200ms)
Signal input: 3 channels of 4-20mA analog input, accuracy 01%, can collect pressure, liquid level, warm
sleep and other signals

2-way three-wire PT100 platinum resistor for thermal measurement
Power supply : Ac85~264V or Dc8~36V
Measuring medium: water, sea water, sewage, alcohol, various oils, etc., single, uniform,
stable liquid that can guide ultrasonic waves
Media turbidity: ≤ 2000pm and small bubble content
Applicable pipe: Carbon steel, stainless steel, copper, PVc, aluminum, fiberglass and other uniform and
dense pipes, allowing lining
Straight pipe section: The sensor installation point is best to meet: upstream 10, downstream 5, from
the pump outlet 300 (D is the diameter)
Certificate
Company Profile
Packing & Shipping
FAQ
Q1: What's your business range?
A: We manufacture PH/ORP/EC/DO/Chlorine/Turbinity meter and provide dosing pump, diaphragm pump,dosing system, pressure instrument, flow meter, level meter, dosing system and so on.
Q2: How about the quality of the managements?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping to you . We have the certification of ISO,CE we could send the certification test of our company to you.
Q3: Can you offer OEM or design services?
A: Yes, we have our own design department and production tools. We can make OEM products according to your requirements.
Q4: What are your terms of payment and delivery time?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally, we will arrange the shipment within 7 days after received payment.
Q5: How about warranty?
A: 12 months warranty.
More information please contact us, we will provide the timely feedback!

---
