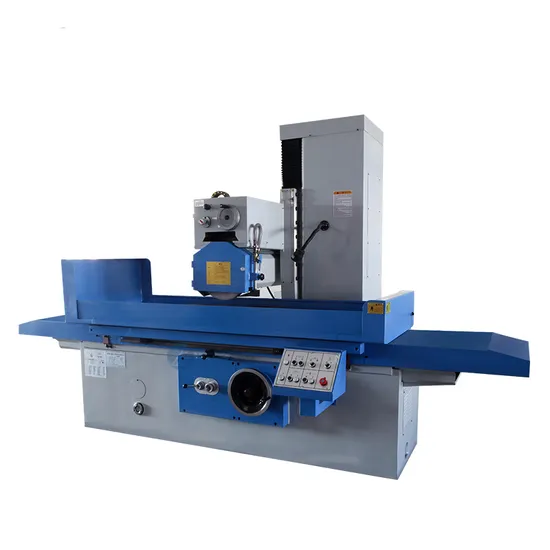

High Quality M7150 Manual Surface Grinding Machine

Product Description

High Quality M7150 Manual Surface Grinding Machine
Product Description
The main performance characteristics:
The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology.
Grinding head vertical rapid lifting, improve production efficiency.
The grinding head lateral movement driven by hydraulic motor, which can also be manually.
The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
Product Parameters
Product main technical parameters:

Specifications		Unit	M7150Ax1000	M7150Ax1600	M7150Ax2200
Table size		mm	500x1000	500x1600	500x2200
Max.size to be grind		mm	500x1000x500	500x1600x500	500x2200x500
Max.load capacity(with electric magnetic chuck)		mm	700	1240	1410
Max distance from table surface to spindle center		mm	700	700	700
Max.table longitudinal travel		mm	1100	1700	2300
Min. Table longitudinal travel		mm	200	200	200
Table longitudinal travel speed		m/min	3-27	3-27	3-27
Table T slot			3x18	3x18	3x18
Wheelhead cross travel	Continuous feeding speed	m/min	0.5-4.5	0.5-4.5	0.5-4.5
	Intermittent feed travel	mm/t	3-30	3-30	3-30
	Per div feed of handwheel	mm	0.02	0.02	0.02
Wheelhead vertical travel	Rapid speed	mm/min	400	400	400
	Per Rev. feed of handwheel	mm/gra	0.01	0.01	0.01
	Per Rev. feed of handwheel	mm	0.645	0.645	0.645
Wheelhead motor	Power	kw	7.5	7.5	7.5
	Speed	rpm	1440	1440	1440
Total rated power		kw	11	11	11
Grinding wheel size(OD*W*ID)		mm	400x40x127	400x40x127	400x40x127
Machine weight		kg	4700	6600	8000

Detailed Photos

Company Profile
FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
